Page 47: Total Hygienic Gullies with grating - cup shaped odor trap
General Catalogue #20
Catalog page
Page 47 of 60

Gullies with grating and vertical outlet,
removable TotalHygienic cup shaped odor trap and filter basket.

  • Line 0511 Gullies with grating and vertical outlet, removable TotalHygienic cup shaped odor trap and filter basket
  • Line 0511 Dwg Gullies with grating and vertical outlet, removable TotalHygienic cup shaped odor trap and filter basket
ARTICLE

R=low profile		 S øA øB C H FLOW RATE
lt/min
DIMENSIONS in mm: with Kit without Kit
RPGV20075TH 25 200 75* 90 150 60 160
PGV20075TH 25 200 75* 130 190 60 160
RPGV200110TH 25 200 110* 90 150 60 240
PGV200110TH 25 200 110* 130 190 60 240
RPGV30075TH 45 300 75* 110 170 80 180
PGV30075TH 45 300 75* 150 210 80 180
RPGV300110TH 45 300 110* 110 170 135 340
PGV300110TH 45 300 110* 150 210 135 340
RPGV400110TH 45 400 110* 110 170 135 340
PGV400110TH 45 400 110* 150 210 135 340
RPGV500110TH 45 500 110* 110 170 135 340
PGV500110TH 45 500 110* 150 210 135 340

* Different diameters on request.
N.B.: Gullies with a depth water seal (dimension D) of 50 mm are in compliance with standard UNI EN 1253-1

Gullies with grating and horizontal outlet,
removable Total Hygienic cup shaped odor trap and filter basket.

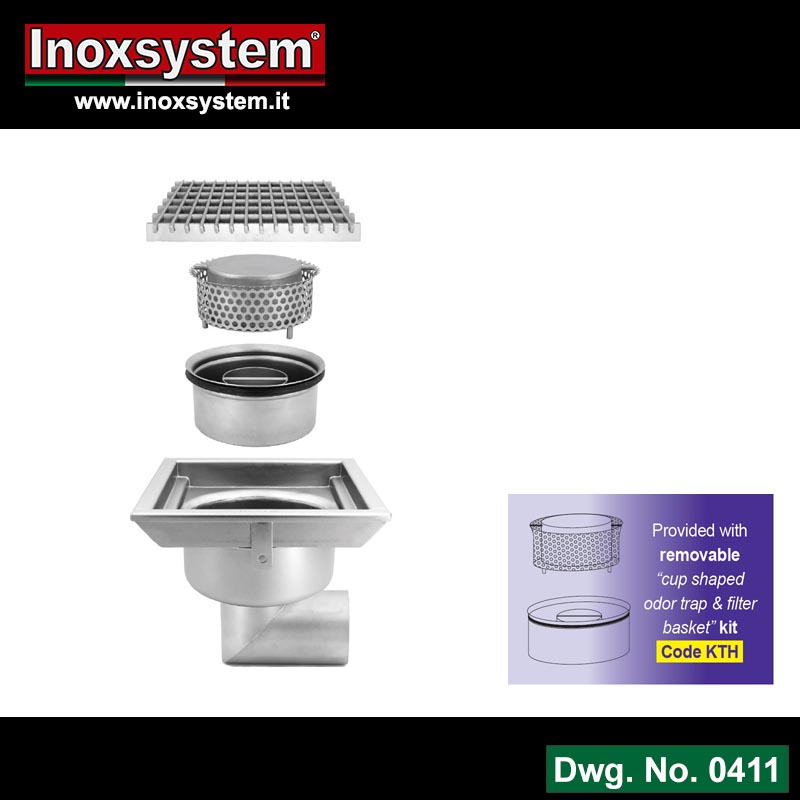

  • Line 0411 Gullies with grating and horizontal outlet, removable Total Hygienic cup shaped odor trap and filter basket.

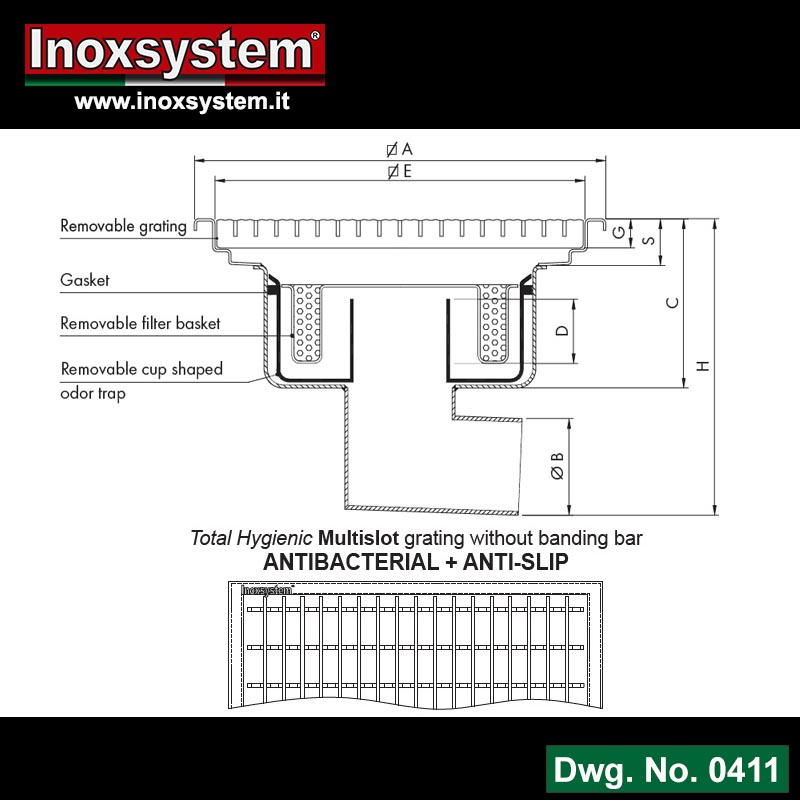

  • Line 0411 Dwg Gullies with grating and horizontal outlet, removable Total Hygienic cup shaped odor trap and filter basket.
ARTICLE

R=low profile		 S øA øB C H FLOW RATE
lt/min
DIMENSIONS in mm: with Kit without Kit
RPGO20075TH 25 200 75* 90 180 60 160
PGO20075TH 25 200 75* 130 220 60 160
RPGO200110TH 25 200 110* 90 215 60 240
PGO200110TH 25 200 110* 130 255 60 240
RPGO30075TH 45 300 75* 110 200 80 180
PGO30075TH 45 300 75* 150 240 80 180
RPGO300110TH 45 300 110* 110 235 135 340
PGO300110TH 45 300 110* 150 275 135 340
RPGO400110TH 45 400 110* 110 235 135 340
PGO400110TH 45 400 110* 150 275 135 340
RPGO500110TH 45 500 110* 110 235 135 340
PGO500110TH 45 500 110* 150 275 135 340

* Different diameters on request.
N.B.: Gullies with a depth water seal (dimension D) of 50 mm are in compliance with standard UNI EN 1253-1

Ultra-low profile gullies with grating with horizontal outlet,
removable TotalHygienic cup shaped odor trap.

  • Line 0409 Ultra-low profile gullies with grating with horizontal outlet, removable TotalHygienic cup shaped odor trap
  • Line 0409 Dwg Ultra-low profile gullies with grating with horizontal outlet, removable TotalHygienic cup shaped odor trap
ARTICLE S øA øB C H FLOW RATE
lt/min
DIMENSIONS in mm: with Kit without Kit
URPGO20050TH 25 200 50* 55 105 50 80
URPGO20063TH 25 200 63* 57 125 60 120
URPGO20075TH 25 200 75* 60 140 60 160
URPGO200110TH 25 200 110* 60 170 60 240
URPGO30050TH 45 300 50* 75 120 50 100
URPGO30063TH 45 300 63* 77 140 60 140
URPGO30075TH 45 300 75* 80 160 80 180
URPGO300110TH 45 300 110* 80 190 135 340
URPGO400110TH 45 400 110* 80 190 135 340
URPGO500110TH 45 500 110* 80 190 135 340

* Different diameters on request
N.B.: Gullies with a depth water seal (dimension D) of 50 mm are in compliance with standard UNI EN 1253-1
By removing both filter basket and internal pipe the wastewater flows and the floor drain should be thoroughly cleaned.
It is highly recommended to fill the floor drain with water after cleaning in order to stop smells from coming back up.

Total Hygienic Gullies with grating - cup shaped odor trap in stainless steel
