Line 0810
Standard grating channel with direct non-siphoned outlet

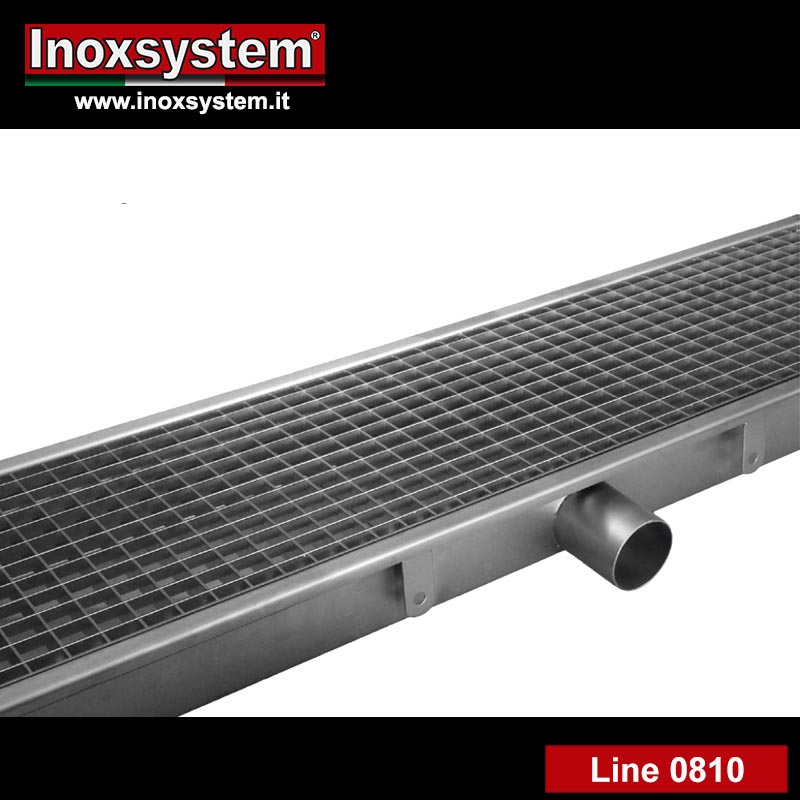

line 0810 Standard grating channel with direct non-siphoned outlet in stainless steel
line 0810 Dwg Standard grating channel with direct non-siphoned outlet in stainless steel
Technical details:
- Channel with grating
- Version without odor trap
- Direct outlet Ø 63, h 100 mm
- See page 16 for more details
- Channel with grating
- Version without odor trap
- Direct outlet Ø 63, h 100 mm
- See page 16 for more details
WITH HEELSAFE GRATING IDEAL FOR SWIMMING POOLS, SHOWERS AND TERRACES
Line 0460
“Hidden” slot channel to be installed under the floor with floor drain
line 0460 Hidden slot channel to be installed under the floor with floor drain in stainless steel
line 0460 Dwg Hidden slot channel to be installed under the floor with floor drain in stainless steel
Technical details:
- “Hidden” slot channel
to be installed under the floor
- Version with straight horizontal edges
- Box for inspection
with direct outlet or with
odor trap, outlet Ø 63 mm
- “Hidden” slot channel
to be installed under the floor
- Version with straight horizontal edges
- Box for inspection
with direct outlet or with
odor trap, outlet Ø 63 mm
DEVELOPED FOR WATERPROOF MEMBRANE APPLICATION
Line 0450
“Hidden” slot channel to be installed under the floor without floor drain
line 0450 Hidden slot channel to be laid under the floor in stainless steel
line 0450 Dwg Hidden slot channel to be laid under the floor in stainless steel
Technical details:
- “Hidden” slot channel
to be installed under the floor
- Version with straight horizontal edges
- Direct outlet Ø 63 mm
without box for inspection
- “Hidden” slot channel
to be installed under the floor
- Version with straight horizontal edges
- Direct outlet Ø 63 mm
without box for inspection
DEVELOPED FOR WATERPROOF MEMBRANE APPLICATION
Other items in stainless steel

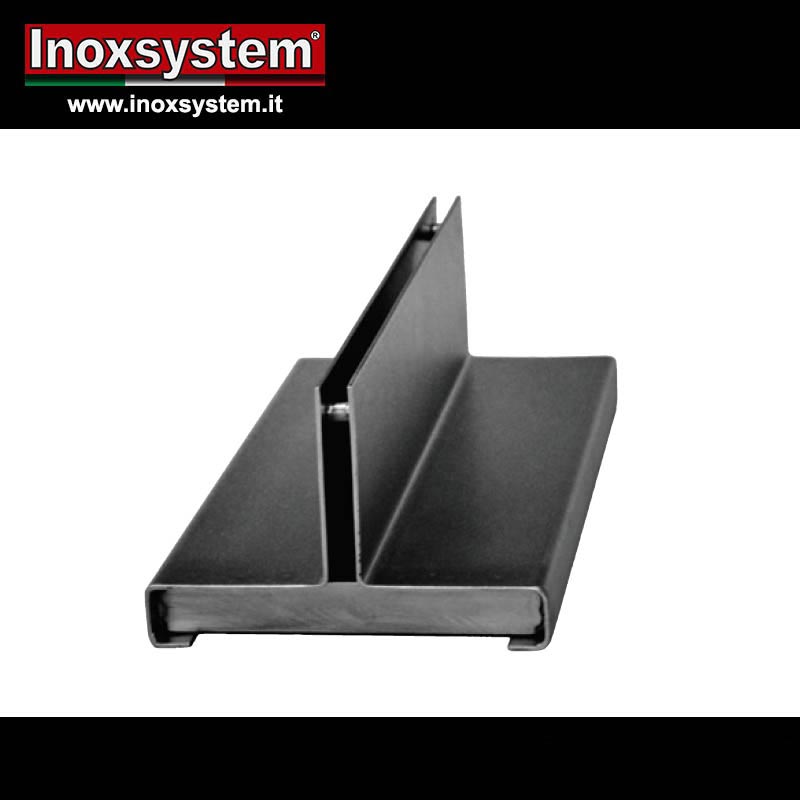

SINGLE-SLOT GRATING FOR CONCRETE TRENCH DRAINS
single-slot grating for concrete trench drains in stainless steel
Section single-slot grating for concrete trench drains in stainless steel
examples single-slot grating for concrete trench drains in stainless steel
STAINLESS STEEL GRATING FOR INSPECTION WITH FRAME
Stainless steel grating for inspection with frame
STAINLESS STEEL GRATING
FOR INSPECTION WITH FRAME
stainless steel grating for inspection with frame
installation example Stainless steel slot channel
-
* Dimensions can be modified on request.
-
* These technical drawings are property of INOXSYSTEM
® and cannot be copied or reproduced without our prior written permission.
