Page 22: Recessed manhole and gratings
General Catalogue #20
Catalog page
Page 22 of 60

recessed manhole covers and gratings in stainless steel



Recessed manhole cover with frame
heavy duty line , sheet thickness 3 mm.

  • Recessed manhole cover with frame heavy duty line in stainless steel

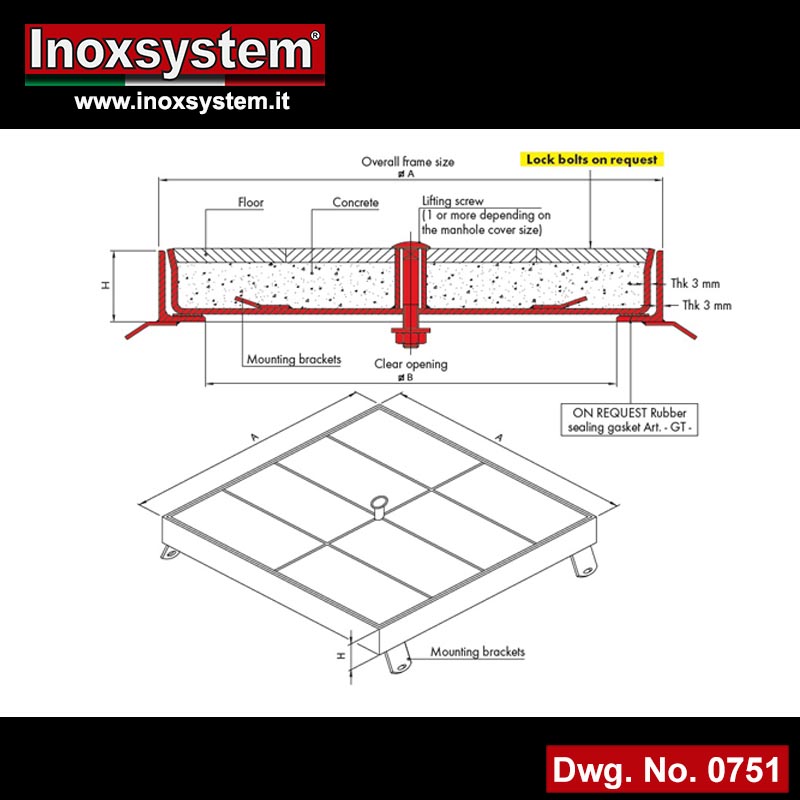

  • Dwg Recessed manhole cover with frame heavy duty line in stainless steel
ARTICLE øA øB H
DIMENSIONS in mm:
S250P 250 200 60
S300P 300 250 60
S350P 350 300 60
S400P 400 350 60
S450P 450 400 60
S500P 500 450 60
S550P 550 500 60
S600P 600 550 60
S650P 650 600 60
S700P 700 650 60
S750P 750 700 60
S800P 800 750 60

Recessed manhole cover with frame
medium duty line , sheet thickness 1,5 mm

  • Recessed manhole cover with frame medium duty line in stainless steel
  • Dwg Recessed manhole cover with frame medium duty line in stainless steel
ARTICLE øA øB H
DIMENSIONS in mm:
S250IP 250 200 60
S300IP 300 250 60
S350IP 350 300 60
S400IP 400 350 60
S450IP 450 400 60
S500IP 500 450 60
S550IP 550 500 60
S600IP 600 550 60
S650IP 650 600 60
S700IP 700 650 60
S750IP 750 700 60
S800IP 800 750 60

Pressed steel recessed manhole cover with frame
light duty line for pedestrian areas.

  • Pressed steel recessed manhole cover with frame light duty line for pedestrian areas
ARTICLE Dimensions in mm LOAD CLASS
SL230P 230 x 230 x h50 A 15
SL330P 330 x 330 x h50 A 15
SL430P 430 x 430 x h50 A 15
SL530P 530 x 530 x h50 A 15

Clear opening = overall dimensions - 40 mm

2 mm thick
grating with frame.

  • Grating with frame in stainless steel
ARTICLE Dimensions in mm LOAD CLASS
SG160 160 x 160 x h28 *
SG210 210 x 210 x h28 *
SG260 260 x 260 x h28 *
SG310 310 x 310 x h28 *
SG360 360 x 360 x h28 *
SG410 410 x 410 x h28 *
SG460 460 x 460 x h28 *
SG510 510 x 510 x h28 *

  • * Dimensions can be modified on request.

  • * These technical drawings are property of INOXSYSTEM
    ® and cannot be copied or reproduced without our prior written permission.
