Page 36: Channel with vertical edges - central slot
General Catalogue #20
Catalog page
Page 36 of 60

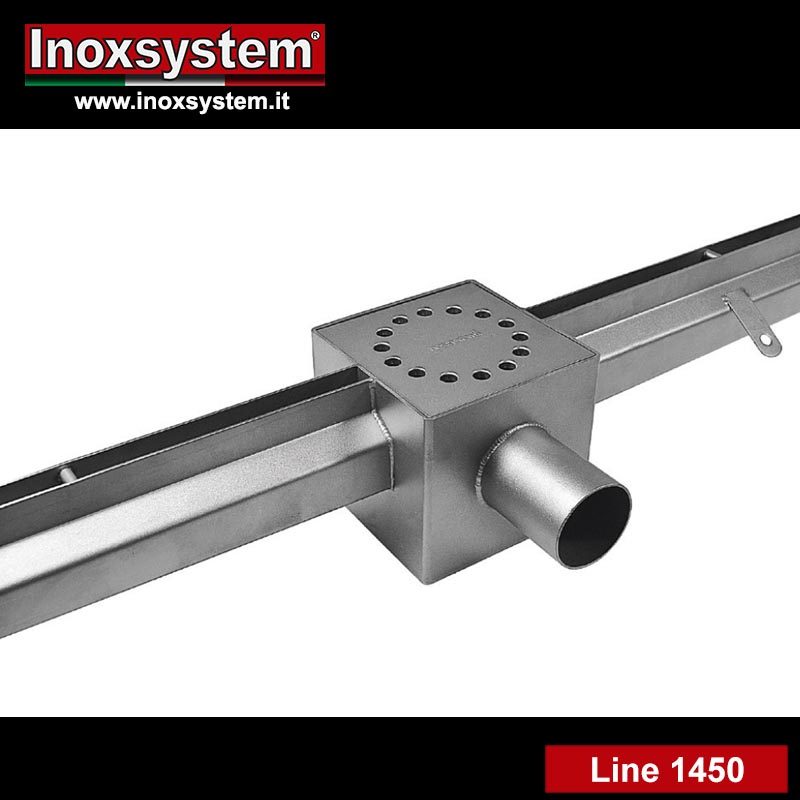

Line 1450
Heel-proof slot channel with central vertical edges and odor trap

Technical details:
- 8 - 15 - 20 mm central slot
- Version with vertical edges - central
slot tapered to prevent blockage

- Floor drain with 150x150 mm top
cover outlet Ø 63 mm, h 140 mm
- With odor trap and filter basket
- See page 13 for more details
IDEAL FOR SWIMMING POOLS, TERRACES, SQUARES, PUBLIC AREAS

Line 1460
Heel-proof slot channel with central vertical edges and tileable top cover floor drain

Technical details:
- 8 - 15 - 20 mm central slot
- Version with vertical edges - central
slot tapered to prevent blockage

- Floor drain with 150x150 mm
tileable top cover outlet Ø 63 mm, - h 140 mm
- With odor trap and filter basket
- See page 13 - for more details
IDEAL FOR SWIMMING POOLS, TERRACES, SQUARES, PUBLIC AREAS

Line 1470
Heel-proof slot channel with central vertical edges and direct outlet without odor trap

Technical details:
- 8 - 15 - 20 mm central slot
- Version with vertical edges - central
slot tapered to prevent blockage

- 80x80 mm access unit with
outlet Ø 63 mm, h 100 mm
- Direct outlet without odor trap
- Tileable cover on request Line 1480
IDEAL FOR SWIMMING POOLS, TERRACES, SQUARES, PUBLIC AREAS

Line 1490
Heel-proof slot channel with central vertical edges and direct outlet without access unit

Technical details:
- 8 - 15 - 20 mm central slot
- Version with vertical edges - central
slot tapered to prevent blockage

- Direct outlet without
odor trap Ø 63 mm
- Without access unit
IDEAL FOR SWIMMING POOLS, TERRACES, SQUARES, PUBLIC AREAS
  • * Dimensions can be modified on request.

  • * These technical drawings are property of INOXSYSTEM
    ® and cannot be copied or reproduced without our prior written permission.
