Page 26: Flange for waterproof membrane
General Catalogue #20
Catalog page
Page 26 of 60

Flange for waterproof membrane application in stainless steel



Floor drain with odor trap and filter basket, with round flange for waterproof membrane application.

Dwg N° 0135

  • Floor drain with odor trap and filter basket, with round flange for waterproof membrane
  • Dwg Floor drain with odor trap and filter basket, with round flange for waterproof membrane
ARTICLE A S B C D H E
Dimensions in mm:
SG110VCE308 300 8 110 110 55 180 400

Tutti i chiusini a pagina 8 e 9 possono essere realizzati con il supporto guaina

Dwg N° 0035

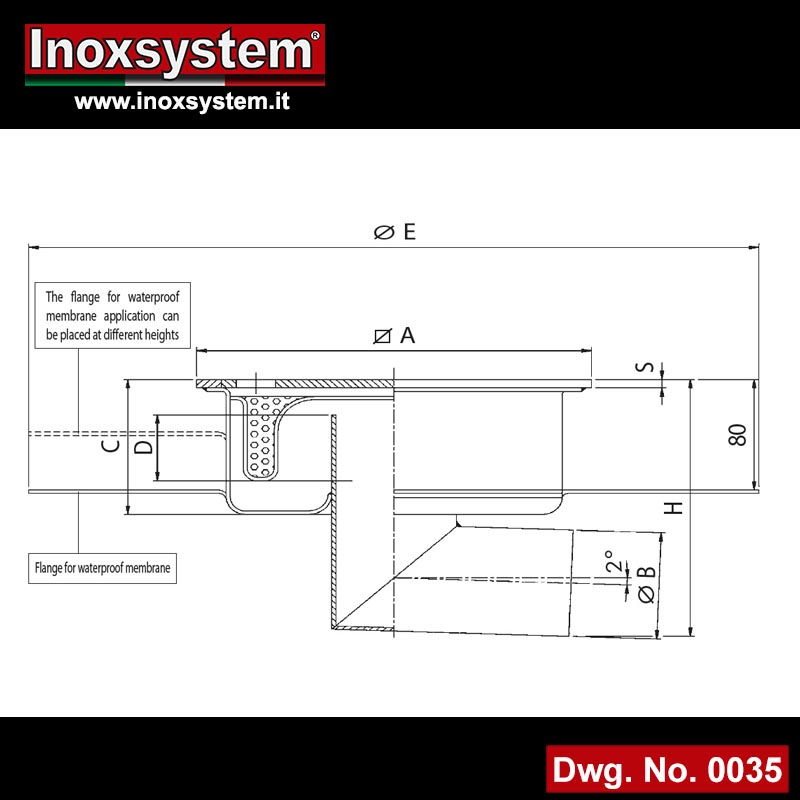

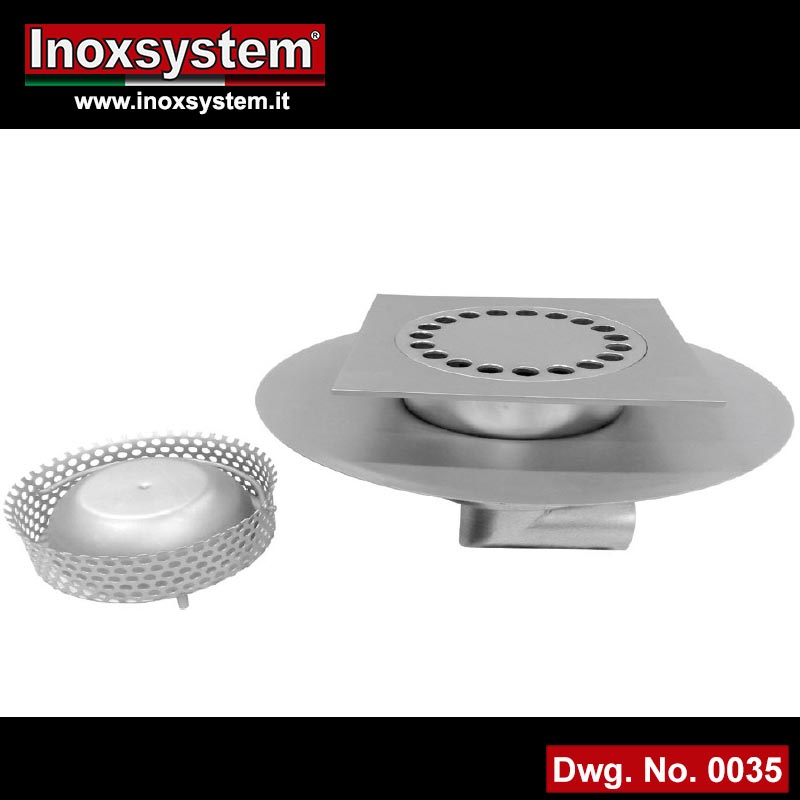

  • Floor drain with odor trap, horizontal outlet, with round flange for waterproof membrane
  • Dwg Floor drain with odor trap, horizontal outlet, with round flange for waterproof membrane
ARTICLE A S B C D H E
Dimensions in mm:
SG110LCE308 300 8 110 110 55 220 400


Tutti i chiusini a pagina 8 e 9 possono essere realizzati con il supporto guaina

Telescopic floor drain with odor trap and filter basket, with round flange for waterproof membrane application

Telescopic solution enables height adjustment of the gully and fast installation on site.
The round flange is ideal for application of waterproof membrane.

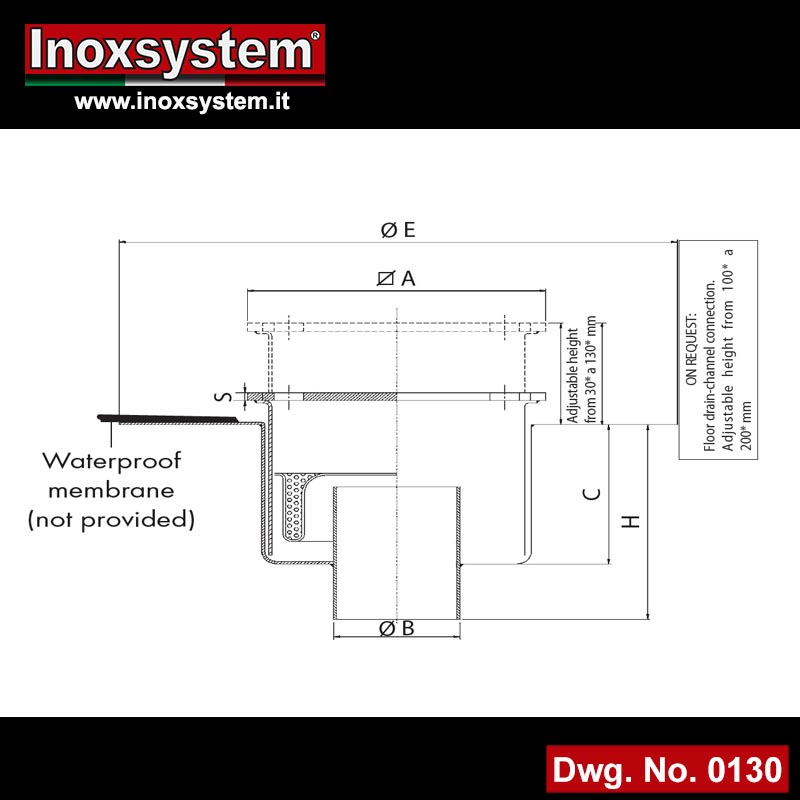

Dwg N° 0130

  • Telescopic floor drain with odor trap and filter basket, with round flange for waterproof membrane
  • Dwg Telescopic floor drain with odor trap and filter basket, with round flange for waterproof membrane
ARTICLE A S B C H E
Dimensions in mm:
CT110VCE308 300 8 110 140 210 500

Dwg N° 0030

  • Telescopic floor drain with odor trap and filter basket, with round flange for waterproof membrane in stainless steel
  • Dwg Telescopic floor drain with odor trap and filter basket, with round flange for waterproof membrane in stainless steel
ARTICLE A S B C H E
Dimensions in mm:
CT110LCE308 300 8 110 140 250 500

Inoxsystem® type stainless steel pipe union (“Mexican” pipe union).

  • Inoxsystem type stainless steel pipe union (“Mexican” pipe union).
  • Dwg Inoxsystem type stainless steel pipe union (“Mexican” pipe union).
ARTICLE A De Di C Maximum Ø size
of floor drains
outlet
Dimensions in mm:
M50 330 50 45 300 Suitable for Ø 40
M63 330 63 58 300 Suitable for Ø 50
M75 330 75 70 300 Suitable for Ø 63
M90 330 90 85 300 Suitable for Ø 80
M110 330 109 104 300 Suitable for Ø 90
M125 330 125 120 300 Suitable forØ 110

  • * Dimensions can be modified on request.

  • * These technical drawings are property of INOXSYSTEM
    ® and cannot be copied or reproduced without our prior written permission.
