Floor drainage systems - Standard lines with gratings

Stainless steel gullies with grating and removable filter basket - horizontal outlet with odor trap

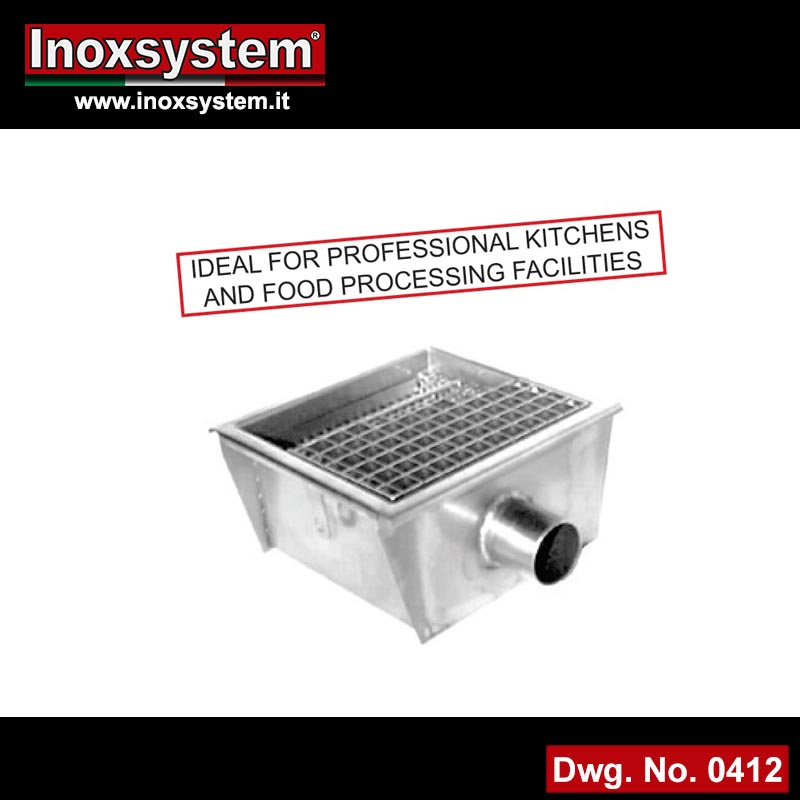

  • Stainless steel gullies with grating and removable filter basket - horizontal outlet with odor trap

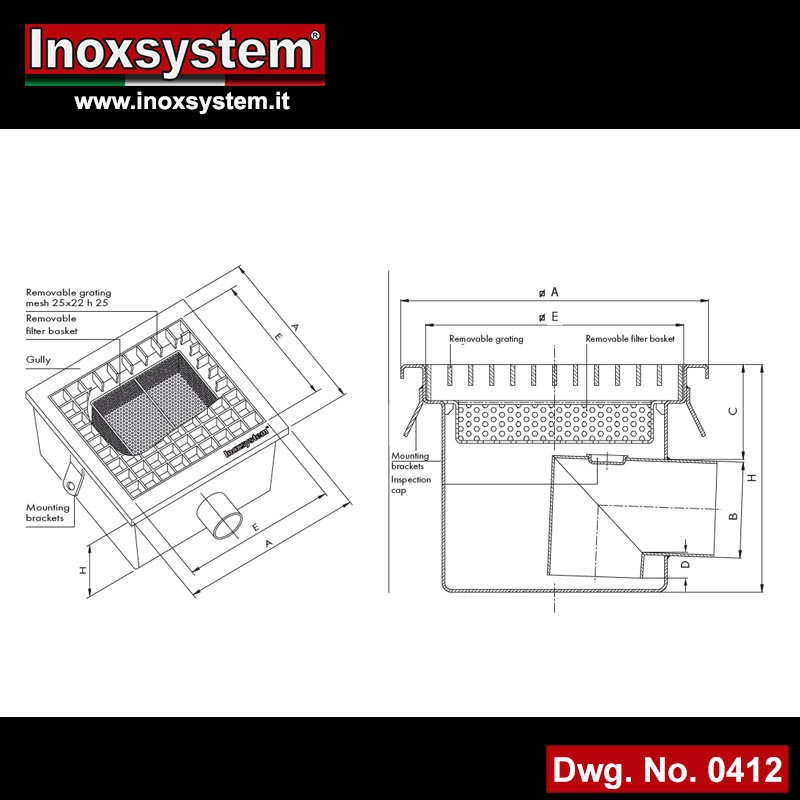

  • Dwg Stainless steel gullies with grating and removable filter basket - horizontal outlet with odor trap
ARTICLE A øB C D E H
Dimensions in mm:
PGO20050 200 50 35 15 150 110
PGO30050 300 50 35 15 250 110
PGO40050 400 50 35 15 350 110
PGO50050 500 50 35 15 450 110

*Low profile version

ARTICLE A øB C D E H
Dimensions in mm:
PGO20063 200 63 50 20 150 150
PGO30063 300 63 50 20 250 150
PGO40063 400 63 50 20 350 150
PGO50063 500 63 50 20 450 150

Stainless steel channel with grating and removable filter basket - central horizontal outlet with odor trap

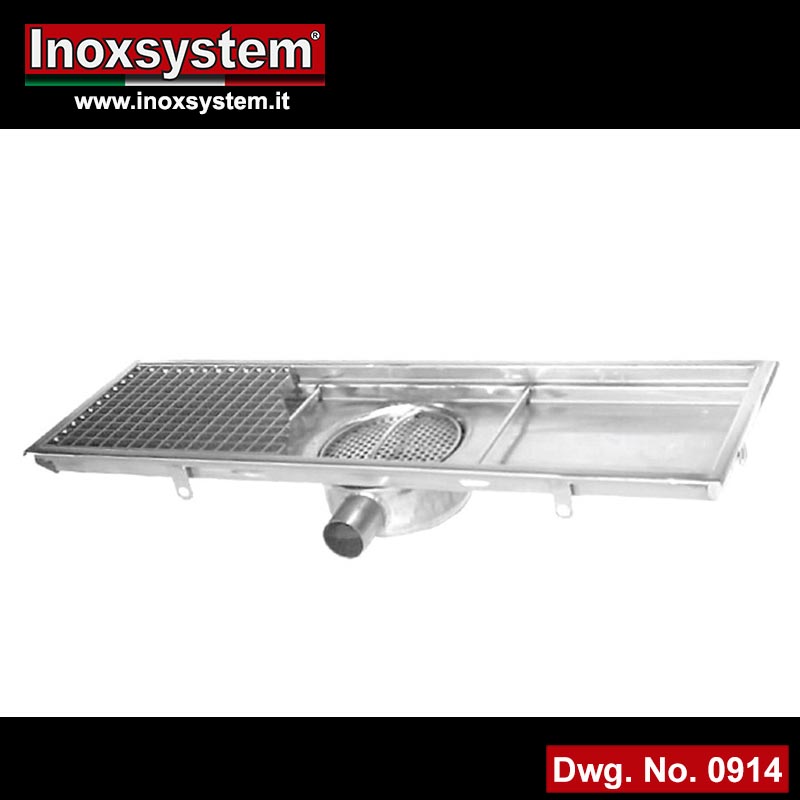

  • Stainless steel channel with grating and removable filter basket - central horizontal outlet with odor trap

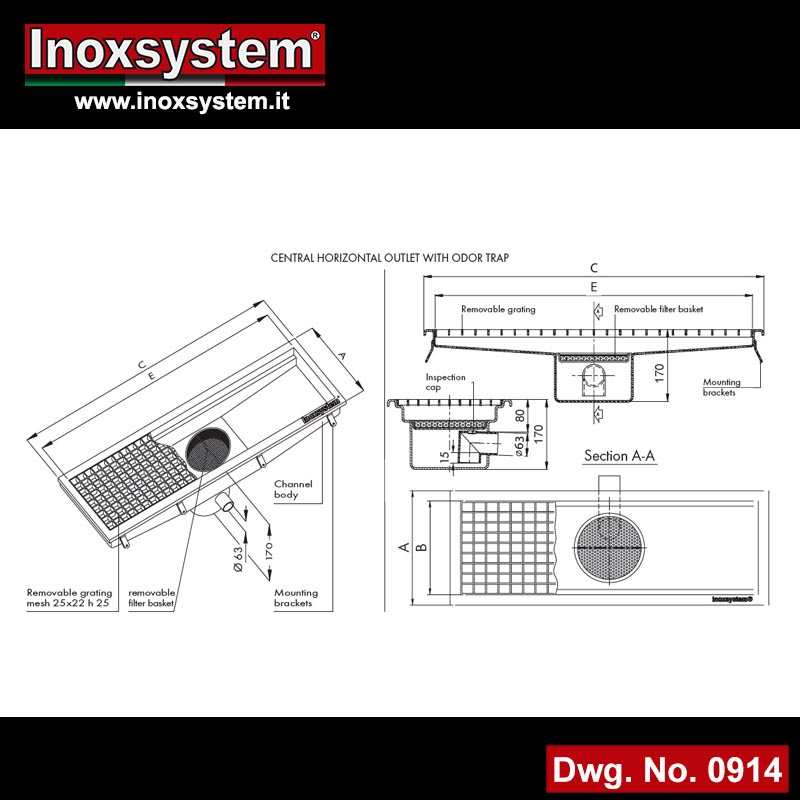

  • Dwg Stainless steel channel with grating and removable filter basket - central horizontal outlet with odor trap
ARTICLE øA øB øC øD
Dimensions in mm:
CGO20105 200 150 1050 1000
CGO30105 300 250 1050 1000
CGO40105 400 350 1050 1000
CGO50105 500 450 1050 1000
ARTICLE øA øB øC øD
Dimensions in mm:
CGO20205 200 150 2050 2000
CGO30205 300 250 2050 2000
CGO40205 400 350 2050 2000
CGO50205 500 450 2050 2000
ARTICLE øA øB øC øD
Dimensions in mm:
CGO20305 200 150 3050 3000
CGO30305 300 250 3050 3000
CGO40305 400 350 3050 3000
CGO50305 500 450 3050 3000

Stainless steel channel with grating and removable filter basket - end horizontal outlet with odor trap

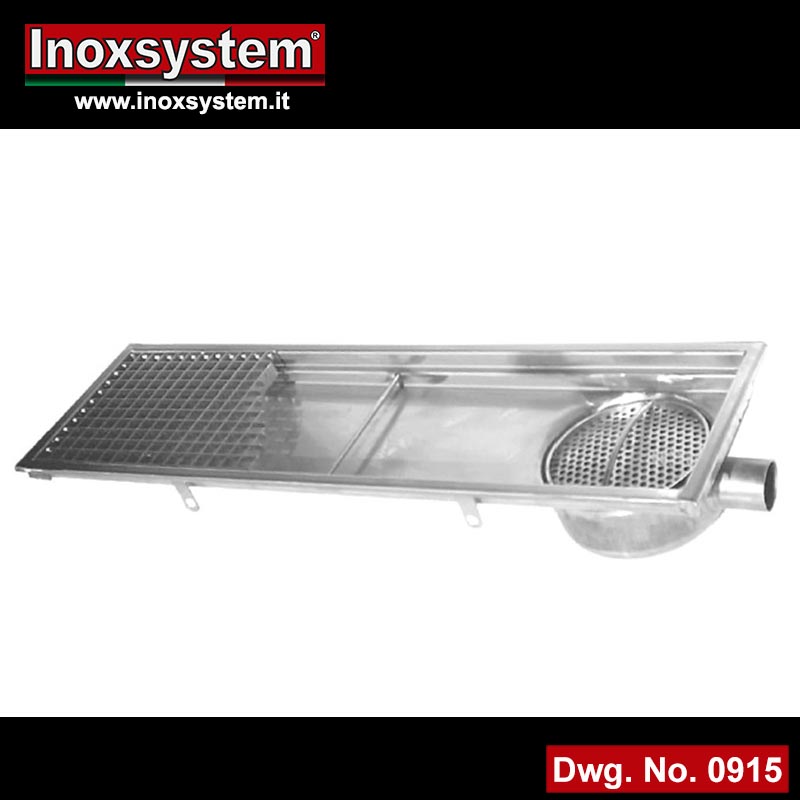

  • Stainless steel channel with grating and removable filter basket - end horizontal outlet with odor trap

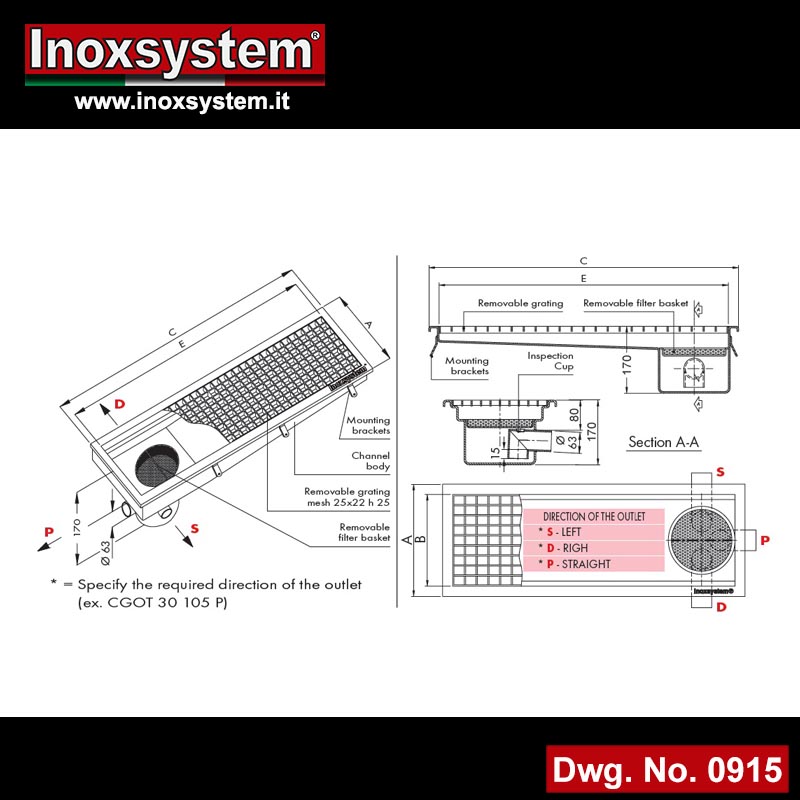

  • Dwg Stainless steel channel with grating and removable filter basket - end horizontal outlet with odor trap
ARTICLE øA øB øC øD
Dimensions in mm:
CGOT20105 200 150 1050 1000
CGOT30105 300 250 1050 1000
CGOT40105 400 350 1050 1000
CGOT50105 500 450 1050 1000
ARTICLE øA øB øC øD
Dimensions in mm:
CGOT20205 200 150 2050 2000
CGOT30205 300 250 2050 2000
CGOT40205 400 350 2050 2000
CGOT50205 500 450 2050 2000
ARTICLE øA øB øC øD
Dimensions in mm:
CGOT20305 200 150 3050 3000
CGOT30305 300 250 3050 3000
CGOT40305 400 350 3050 3000
CGOT50305 500 450 3050 3000

  • * Dimensions can be modified on request.

  • * These technical drawings are property of INOXSYSTEM
    ® and cannot be copied or reproduced without our prior written permission.
