Page 18: Standard lines with grating - vertical outlet
General Catalogue #20
Catalog page
Page 18 of 60

Floor drainage systems - Standard lines with gratings

Stainless steel gullies with grating and removable filter basket - vertical outlet with odor trap

  • Stainless steel gullies with grating and removable filter basket - vertical outlet with odor trap

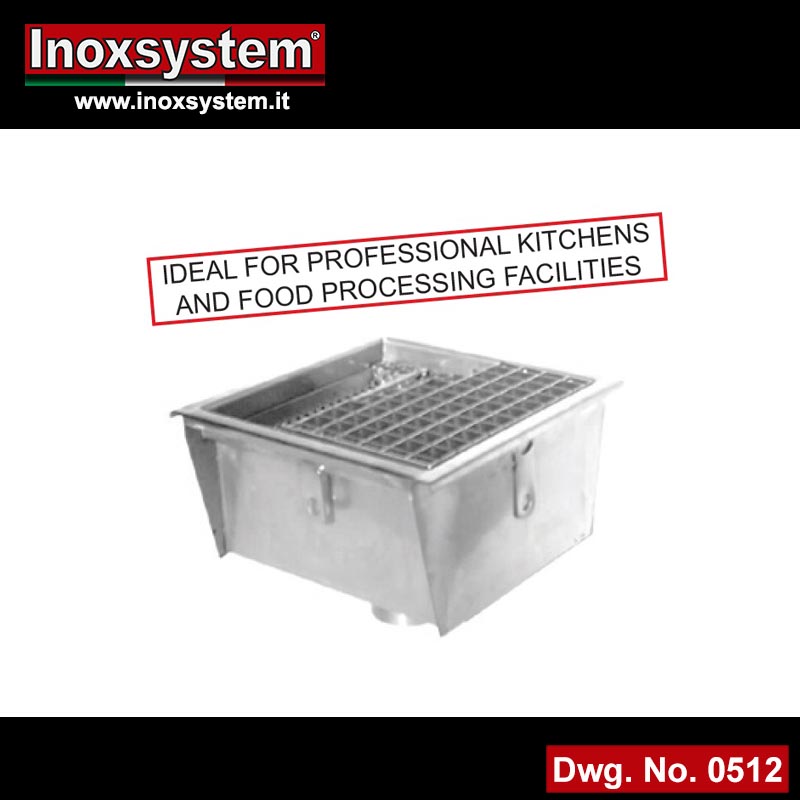

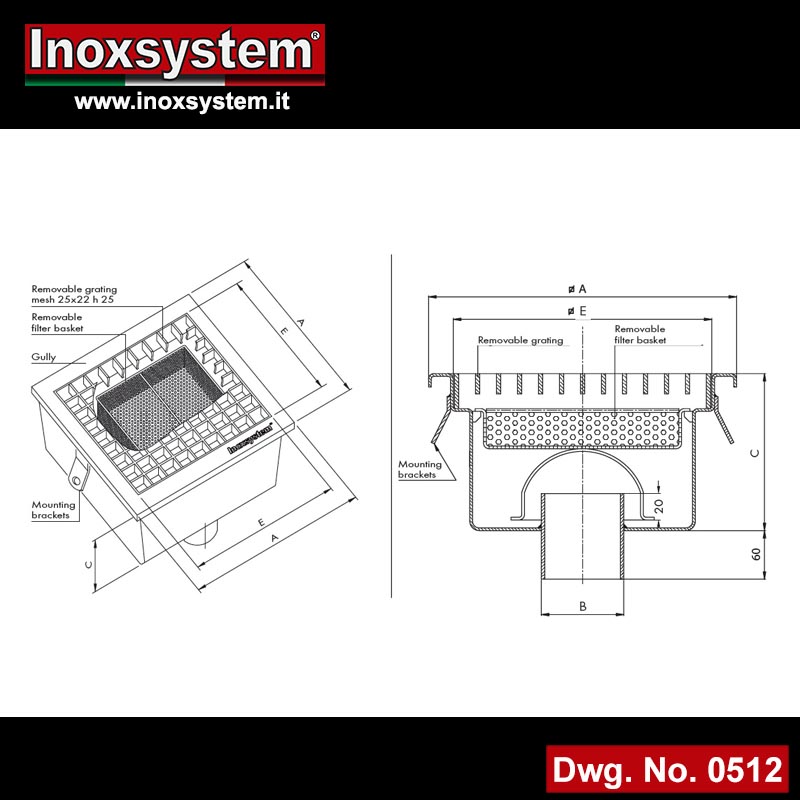

  • Dwg Stainless steel gullies with grating and removable filter basket - vertical outlet with odor trap
ARTICLE A E øB C
Dimensions in mm:
PGV20050 200 150 50 110
PGV30050 300 250 50 110
PGV40050 400 350 50 110
PGV50050 500 450 50 110

*Low profile version

ARTICLE A E øB C
Dimensions in mm:
PGV20063 200 150 63 110
PGV30063 300 250 63 110
PGV40063 400 350 63 110
PGV50063 500 450 63 110

*Low profile version

Stainless steel channel with grating and removable filter basket - central vertical outlet with odor trap

  • Stainless steel channel with grating and removable filter basket - central vertical outlet with odor trap

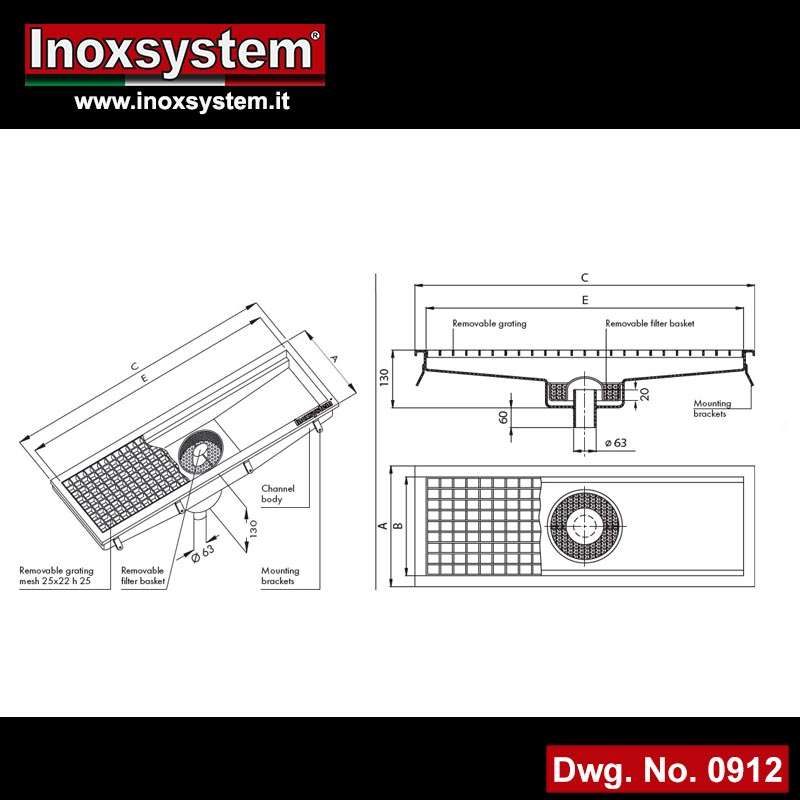

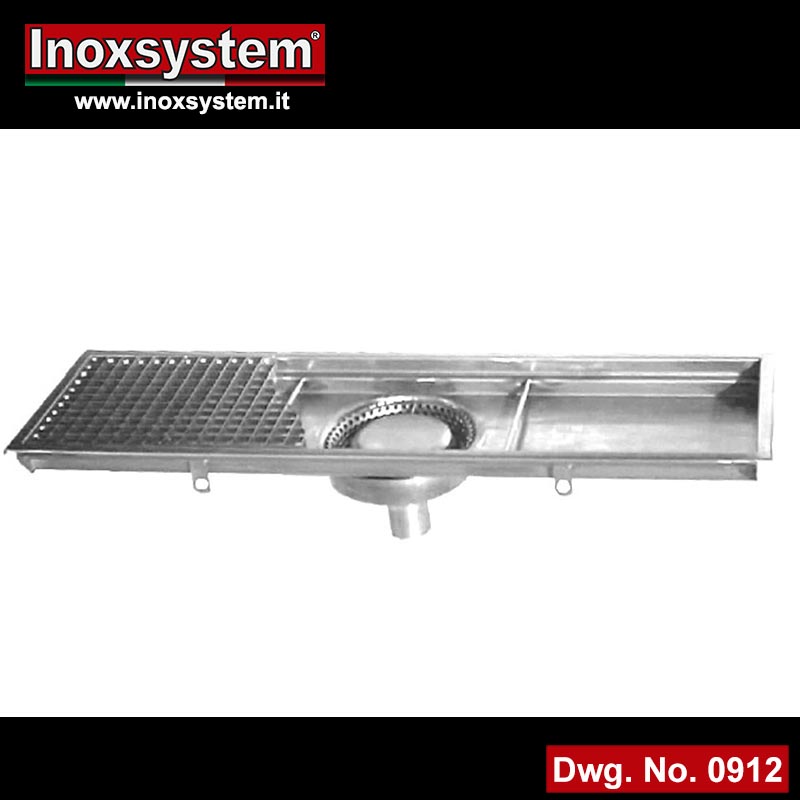

  • Dwg Stainless steel channel with grating and removable filter basket - central vertical outlet with odor trap
ARTICLE øA øB øC øD
Dimensions in mm:
CGV20105 200 150 1050 1000
CGV30105 300 250 1050 1000
CGV40105 400 350 1050 1000
CGV50105 500 450 1050 1000
ARTICLE øA øB øC øD
Dimensions in mm:
CGV20205 200 150 2050 2000
CGV30205 300 250 2050 2000
CGV40205 400 350 2050 2000
CGV50205 500 450 2050 2000
ARTICLE øA øB øC øD
Dimensions in mm:
CGV20305 200 150 3050 3000
CGV30305 300 250 3050 3000
CGV40305 400 350 3050 3000
CGV50305 500 450 3050 3000

Stainless steel channel with grating and removable filter basket - end vertical outlet with odor trap

  • Stainless steel channel with grating and removable filter basket - end vertical outlet with odor trap

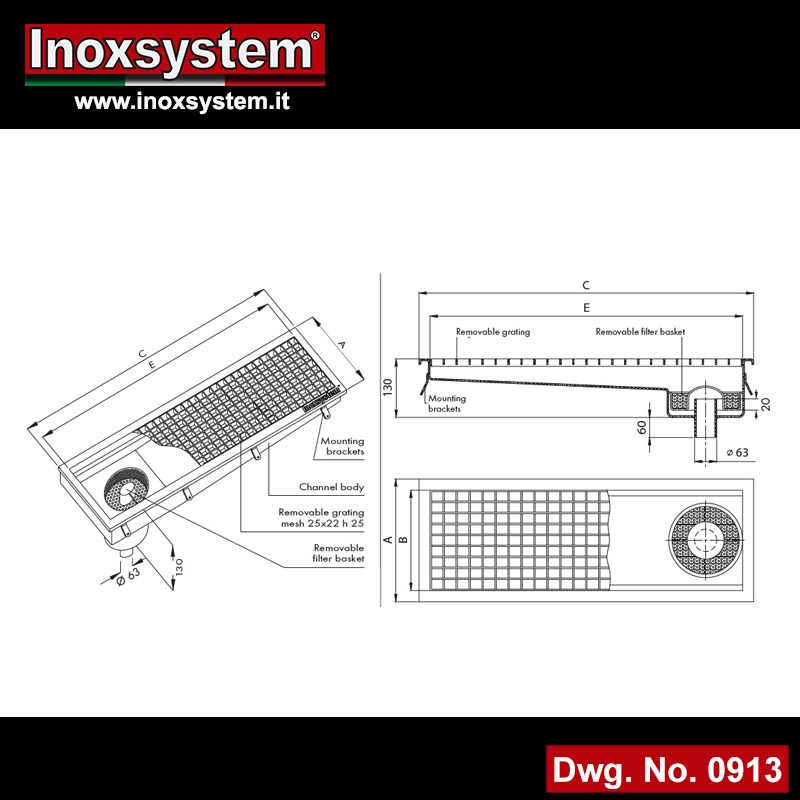

  • Dwg Stainless steel channel with grating and removable filter basket - end vertical outlet with odor trap
ARTICLE øA øB øC øD
Dimensions in mm:
CGVT20105 200 150 1050 1000
CGVT30105 300 250 1050 1000
CGVT40105 400 350 1050 1000
CGVT50105 500 450 1050 1000
ARTICLE øA øB øC øD
Dimensions in mm:
CGVT20205 200 150 2050 2000
CGVT30205 300 250 2050 2000
CGVT40205 400 350 2050 2000
CGVT50205 500 450 2050 2000
ARTICLE øA øB øC øD
Dimensions in mm:
CGVT20305 200 150 3050 3000
CGVT30305 300 250 3050 3000
CGVT40305 400 350 3050 3000
CGVT50305 500 450 3050 3000

  • * Dimensions can be modified on request.

  • * These technical drawings are property of INOXSYSTEM
    ® and cannot be copied or reproduced without our prior written permission.
