Floor drainage systems - “Slot channels with standard slot” line.
Stainless steel slot channels with odor trap and removable filter basket - central vertical outlet
Stainless steel slot channels with odor trap and removable filter basket - central vertical outlet
Dwg Stainless steel slot channels with odor trap and removable filter basket - central vertical outlet
| ARTICLE | A | L |
| Dimensions in mm: | ||
| CFV30130 | 300 | 1300 |
| CFV30230 | 300 | 2300 |
| CFV30330 | 300 | 3300 |
Stainless steel slot channels with odor trap and removable filter basket - end vertical outlet
Stainless steel slot channels with odor trap and removable filter basket - end vertical outlet
Dwg Stainless steel slot channels with odor trap and removable filter basket - end vertical outlet
| ARTICLE | A | L |
| Dimensions in mm: | ||
| CFVT30130 | 300 | 1300 |
| CFVT30230 | 300 | 2300 |
| CFVT30330 | 300 | 3300 |

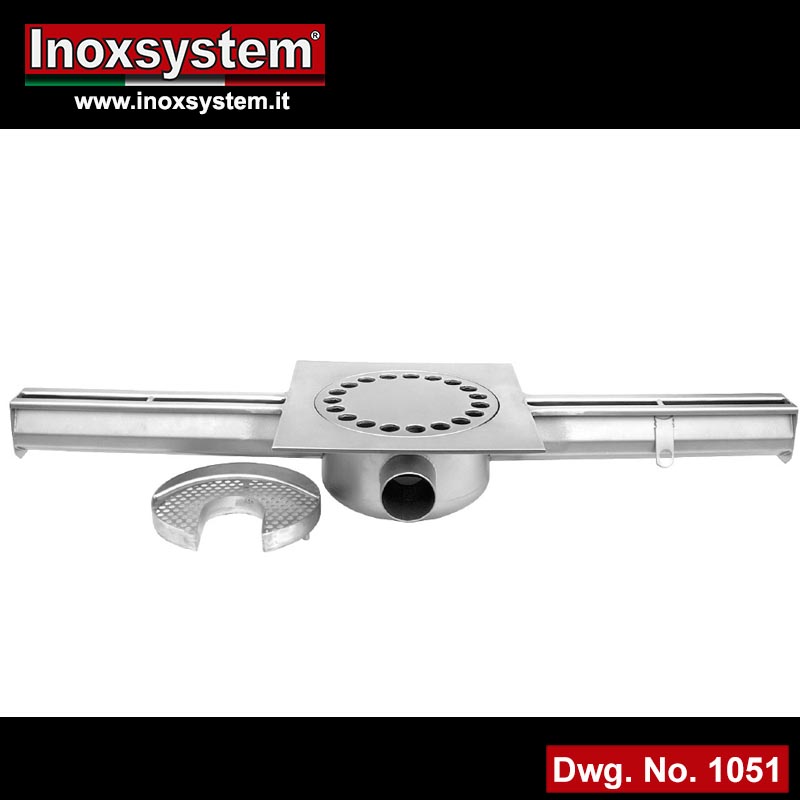

Stainless steel slot channels with odor trap and removable filter basket - central horizontal outlet
Stainless steel slot channels with odor trap and removable filter basket - central horizontal outlet

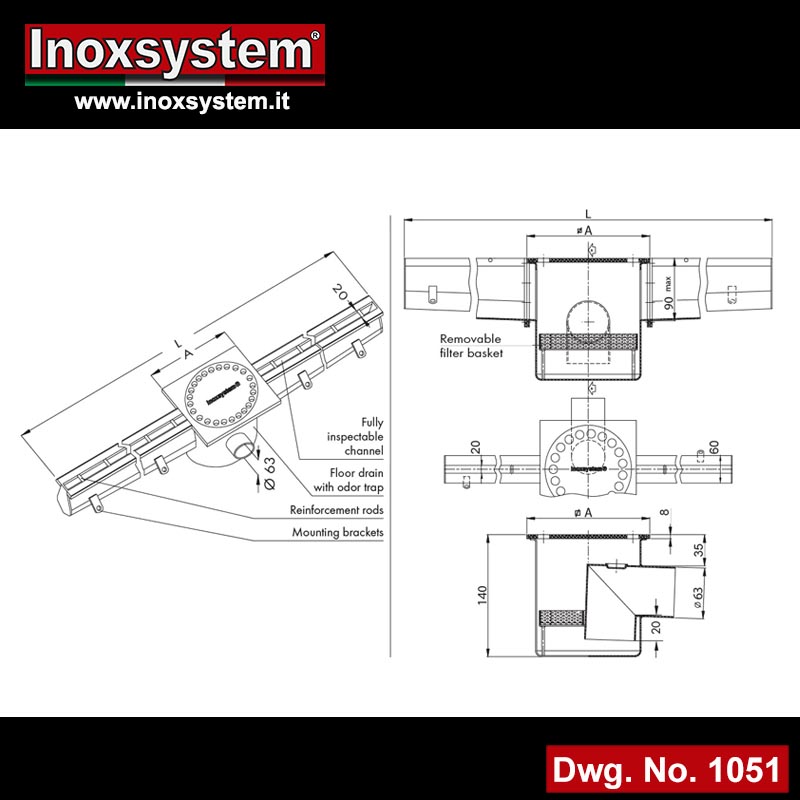

Dwg Stainless steel slot channels with odor trap and removable filter basket - central horizontal outlet
| ARTICLE | A | L |
| Dimensions in mm: | ||
| CFO30130 | 300 | 1300 |
| CFO30230 | 300 | 2300 |
| CFO30330 | 300 | 3300 |

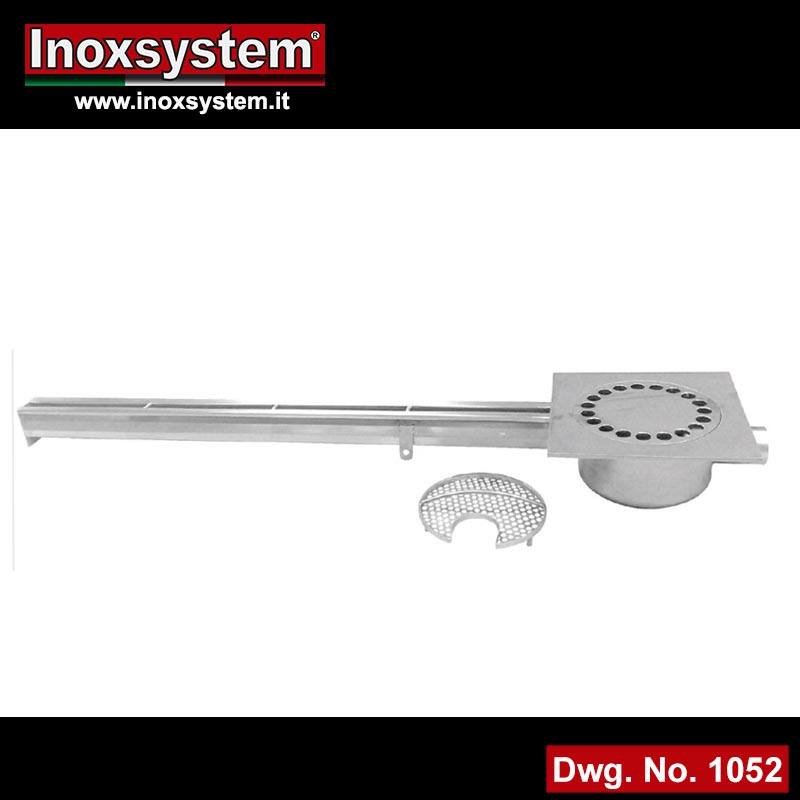

Stainless steel slot channels with odor trap and removable filter basket - end horizontal outlet
Stainless steel slot channels with odor trap and removable filter basket - end horizontal outlet

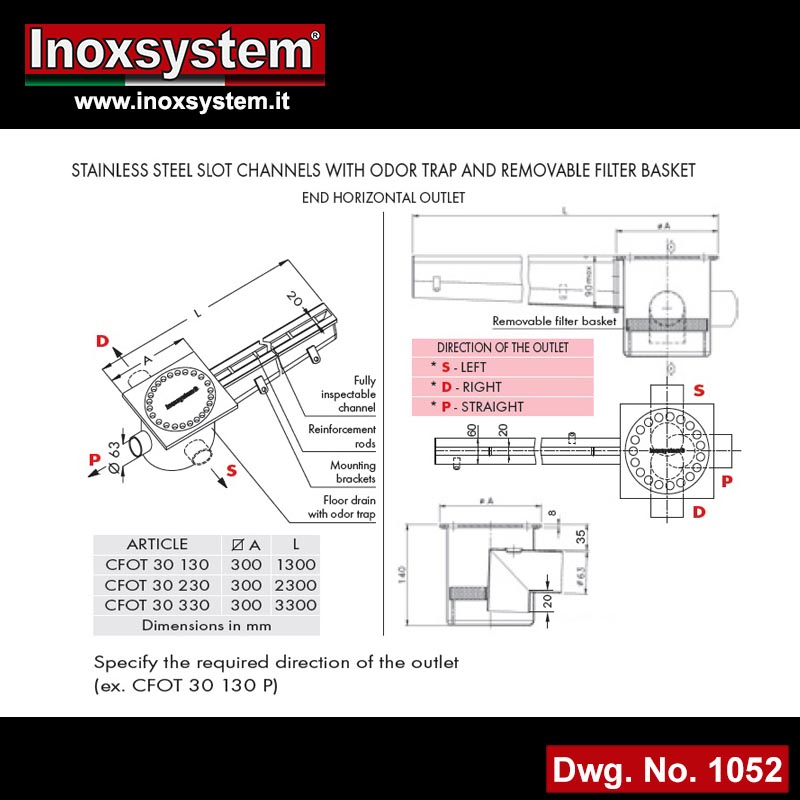

Dwg Stainless steel slot channels with odor trap and removable filter basket - end horizontal outlet
| ARTICLE | A | L |
| Dimensions in mm: | ||
| CFOT30130 | 300 | 1300 |
| CFOT30230 | 300 | 2300 |
| CFOT30330 | 300 | 3300 |
-
* Dimensions can be modified on request.
-
* These technical drawings are property of INOXSYSTEM
® and cannot be copied or reproduced without our prior written permission.
