Pag 53 - Total Hygienic floor drains with cup and connection
General Catalogue #20
Page 53 of 60
Floor drains with square top plate and vertical outlet, with one floor drain-channel connection,
removable Total Hygienic cup shaped odor trap pipe and filter basket.

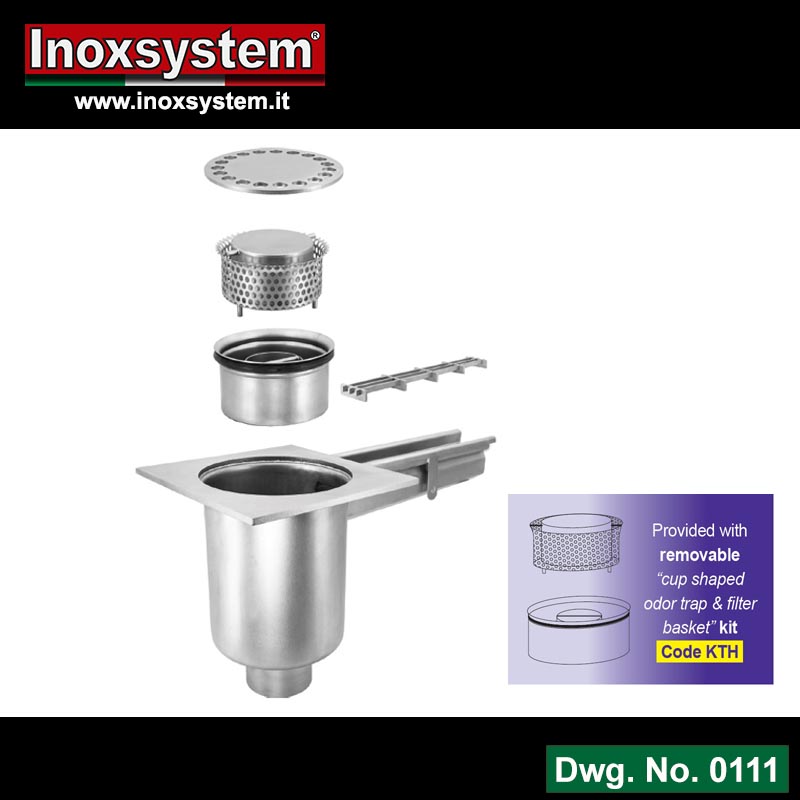

Line 0111 Floor drains with square top plate and vertical outlet removable total hygienic cup shaped odor trap pipe and filter basket

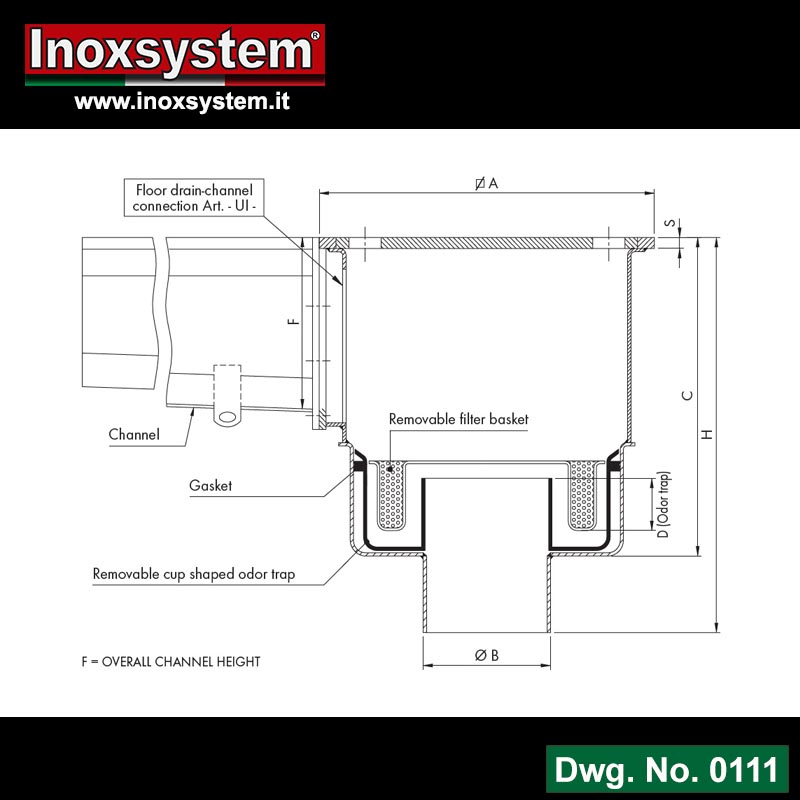

Line 0111 Dwg Floor drains with square top plate and vertical outlet removable total hygienic cup shaped odor trap pipe and filter basket
| ARTICLE R=low profile |
S | øA | øB | C | H | FLOW RATE lt/min |
|
| DIMENSIONS in mm: | with Kit | without Kit | |||||
| RCV75V206TH | 6 | 200 | 75* | 180 | 240 | 60 | 160 |
| CV75V206TH | 6 | 200 | 75* | 220 | 280 | 60 | 160 |
| RCV110V206TH | 6 | 200 | 110* | 180 | 240 | 60 | 240 |
| CV110V206TH | 6 | 200 | 110* | 220 | 280 | 60 | 240 |
| RCV75V308TH | 8 | 300 | 75* | 180 | 240 | 80 | 180 |
| CV75V308TH | 8 | 300 | 75* | 220 | 280 | 80 | 180 |
| RCV110V308TH | 8 | 300 | 110* | 180 | 240 | 135 | 340 |
| CV110V308TH | 8 | 300 | 110* | 220 | 280 | 135 | 340 |
* Different diameters on request.
N.B.: Heights valid for channels with maximum length 12 m
N.B. gullies with a depth water seal (dimension D) of 50 mm are in compliance with standard UNI EN 1253-1
Ultra-low profile floor drains with square top plate and horizontal outlet, with one floor drain-channel connection
removable Total Hygienic cup shaped odor trap pipe and filter basket.
Line 0004 Ultra-low profile floor drains with square top plate removable Total Hygienic cup shaped odor trap pipe and filter basket
Line 0004 Dwg Ultra-low profile floor drains with square top plate removable Total Hygienic cup shaped odor trap pipe and filter basket
| ARTICLE R=low profile |
S | øA | øB | C | H | FLOW RATE lt/min |
|
| DIMENSIONS in mm: | with Kit | without Kit | |||||
| UR50206TH | 6 | 200 | 50* | 150 | 200 | 50 | 80 |
| UR63206TH | 6 | 200 | 63* | 152 | 215 | 60 | 120 |
| UR75206TH | 6 | 200 | 75* | 160 | 235 | 60 | 160 |
| UR110206TH | 6 | 200 | 110* | 155 | 265 | 60 | 240 |
| UR50308TH | 8 | 300 | 50* | 150 | 200 | 50 | 100 |
| UR63308TH | 8 | 300 | 63* | 152 | 215 | 60 | 240 |
| UR75308TH | 8 | 300 | 75* | 160 | 235 | 80 | 180 |
| UR110308TH | 8 | 300 | 110* | 155 | 265 | 135 | 340 |
* Different diameters on request.
N.B.: Heights valid for channels with maximum length 12 m
N.B. gullies with a depth water seal (dimension D) of 50 mm are in compliance with standard UNI EN 1253-1
By removing both filter basket and internal pipe the wastewater flows and the floor drain should be thoroughly cleaned.
It is highly recommended to fill the floor drain with water after cleaning in order to stop smells from coming back up.
