Pag 58 - Total Hygienic Slot channel
General Catalogue #20
Page 58 of 60
Line 4150

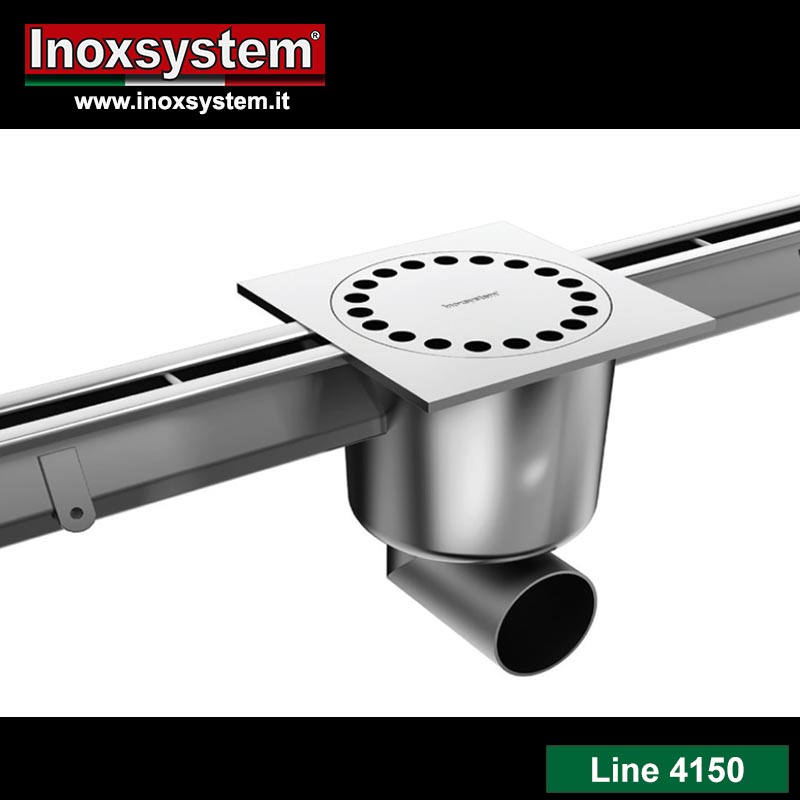

Line 4150 Modular slit channel with plate covers, removable siphoned tube in stainless steel

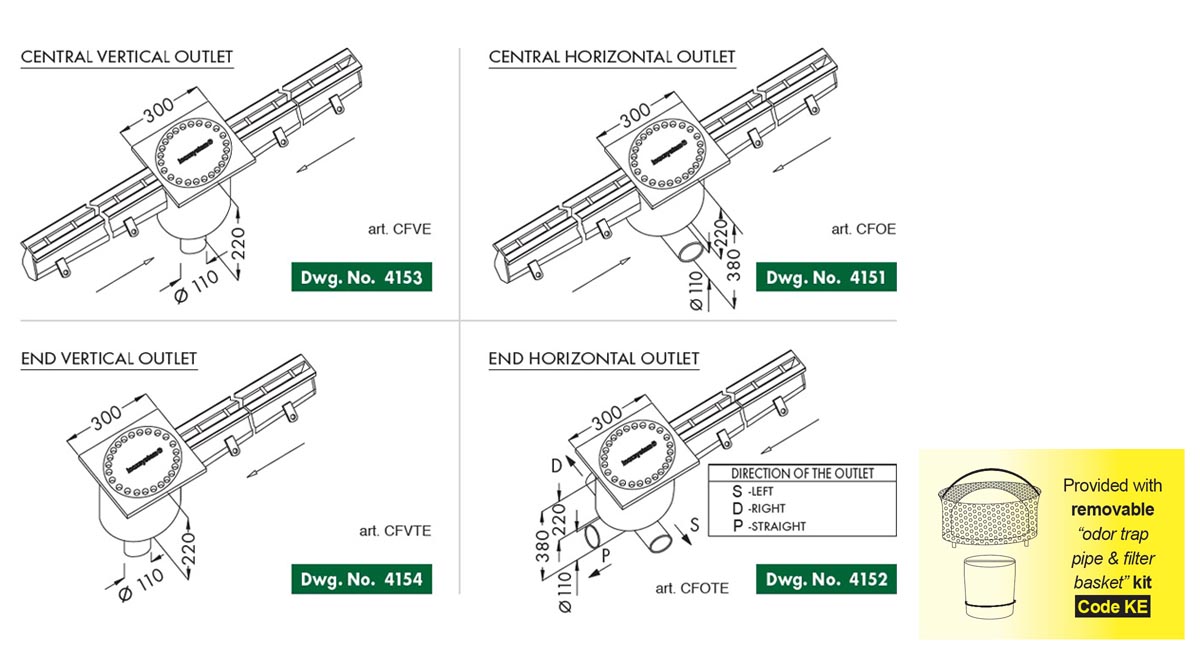

Line 4150 Dwg Modular slit channel with plate covers, removable siphoned tube in stainless steel
Technical details:
- Slot channel with 20 mm standard slot
- Satin finished top edge
- Gully with 300x300 mm top plate,
8 mm thick, outlet Ø 110 mm
- With removable Inoxsystem® Total
Hygienic internal odor trap pipe
- Removable rat proof filter basket
- See page 12 and 13 for other types of channels
- Slot channel with 20 mm standard slot
- Satin finished top edge
- Gully with 300x300 mm top plate,
8 mm thick, outlet Ø 110 mm
- With removable Inoxsystem® Total
Hygienic internal odor trap pipe
- Removable rat proof filter basket
- See page 12 and 13 for other types of channels
Line 4160

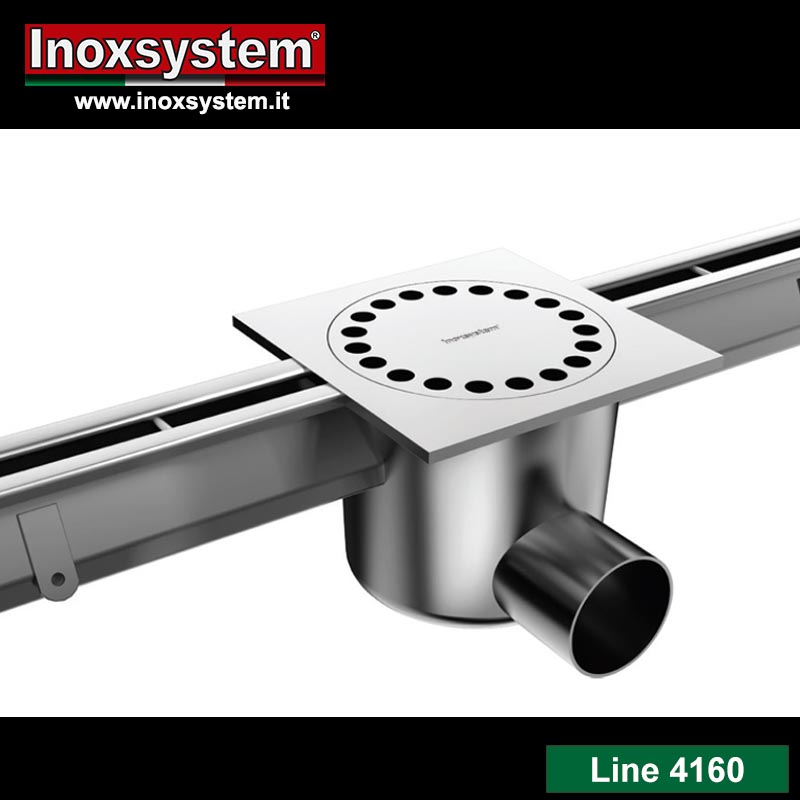

Line 4160 Modular slot channel with plate covers, removable siphon cup in stainless steel

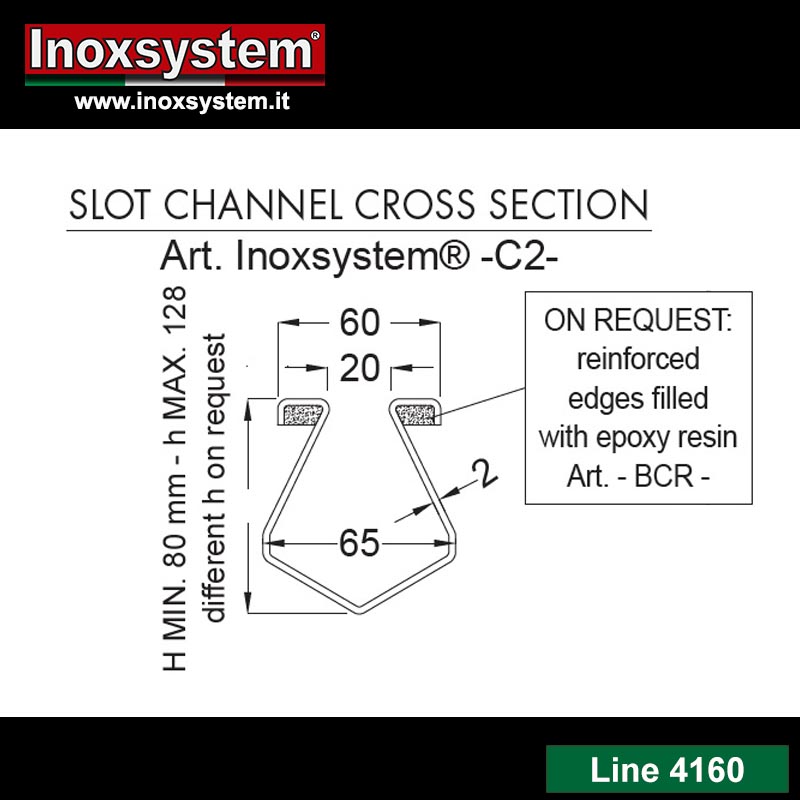

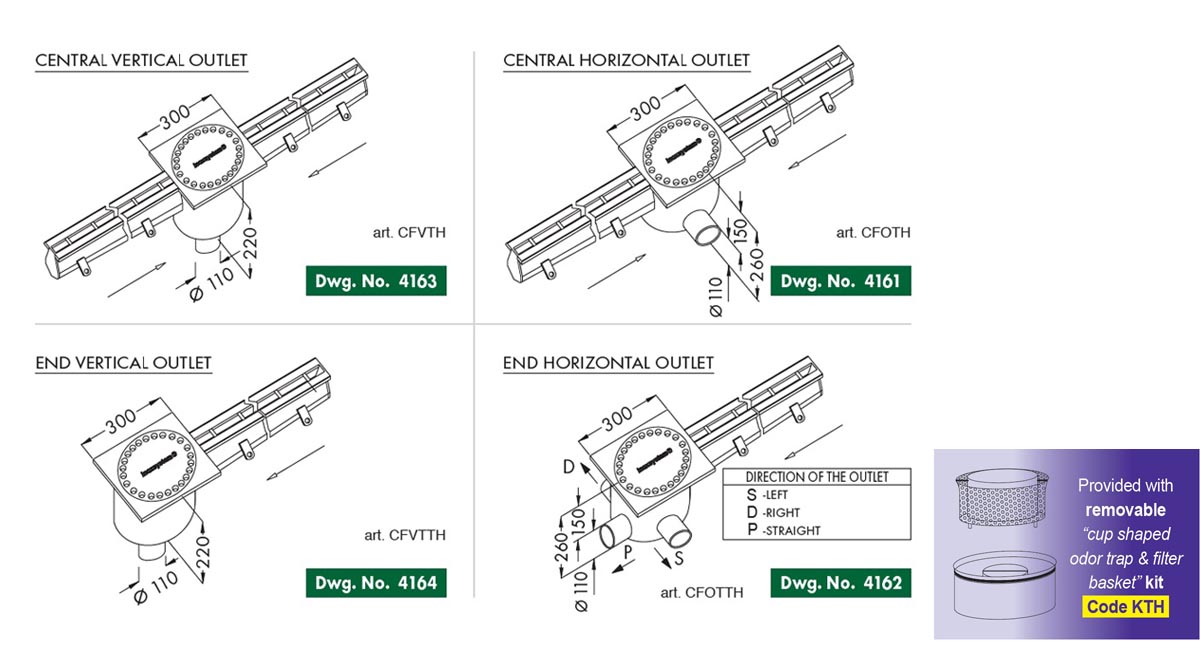

Line 4160 Dwg Modular slot channel with plate covers, removable siphon cup in stainless steel
Technical details:
- Slot channel with 20 mm standard slot
- Satin finished top edge
- Gully with 300x300 mm top plate,
8 mm thick, outlet Ø 110 mm
- With removable Inoxsystem® Total
Hygienic cup shaped odor trap
- Removable rat proof filter basket
- See page 12 and 13 for other types of channels
- Slot channel with 20 mm standard slot
- Satin finished top edge
- Gully with 300x300 mm top plate,
8 mm thick, outlet Ø 110 mm
- With removable Inoxsystem® Total
Hygienic cup shaped odor trap
- Removable rat proof filter basket
- See page 12 and 13 for other types of channels
Line 4170

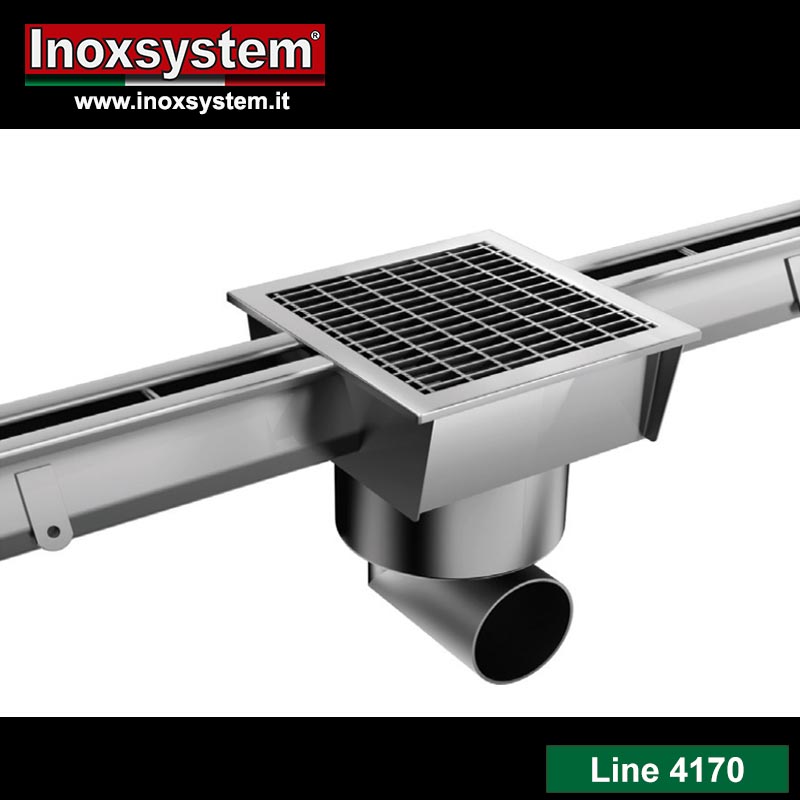

Line 4170 Modular slit channel with grilled manhole covers, extractable siphoned tube in stainless steel
Line 4170 Dwg Modular slit channel with grilled manhole covers, extractable siphoned tube in stainless steel
Technical details:
- Slot channel with 20 mm standard slot
- Satin finished top edge
- 300x300 mm gully with grating, outlet Ø 110 mm
- Antibacterial and antislip grating
- With removable Inoxsystem® Total
Hygienic internal odor trap pipe
- Removable rat proof filter basket
- See page 12 and 13 for other types of channels
- Slot channel with 20 mm standard slot
- Satin finished top edge
- 300x300 mm gully with grating, outlet Ø 110 mm
- Antibacterial and antislip grating
- With removable Inoxsystem® Total
Hygienic internal odor trap pipe
- Removable rat proof filter basket
- See page 12 and 13 for other types of channels
Line 4180

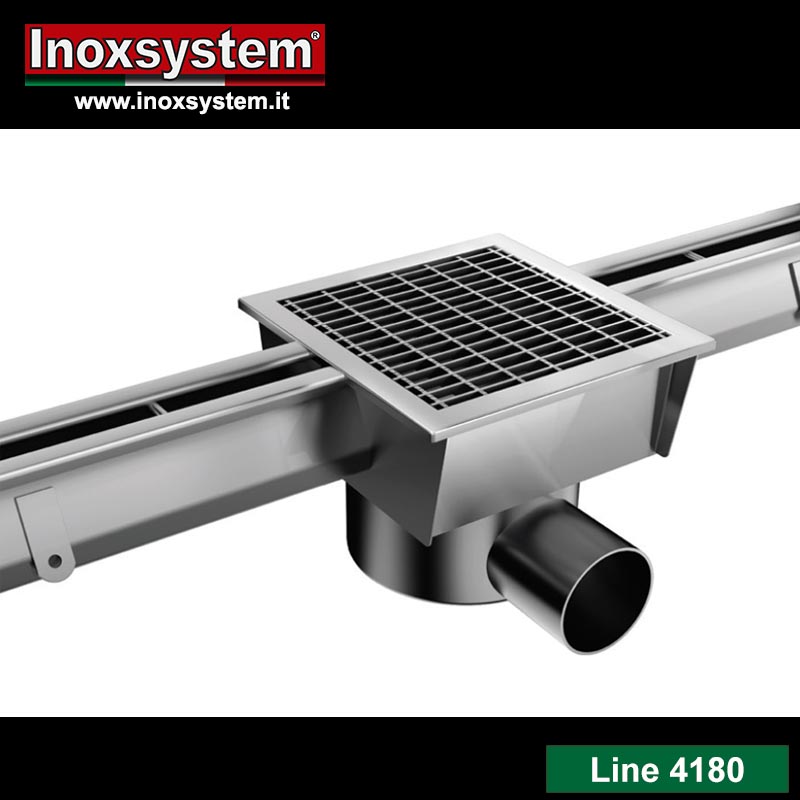

Line 4180 Modular slot channel with grilled manhole covers, removable siphon bowl in stainless steel
Line 4180 Dwg Modular slot channel with grilled manhole covers, removable siphon bowl in stainless steel
Technical details:
- Slot channel with 20 mm standard slot
- Satin finished top edge
- 300x300 mm gully with grating, outlet Ø 110 mm
- Antibacterial and antislip grating
- With removable Inoxsystem® Total
Hygienic cup shaped odor trap
- Removable rat proof filter basket
- See page 12 and 13 for other types of channels
- Slot channel with 20 mm standard slot
- Satin finished top edge
- 300x300 mm gully with grating, outlet Ø 110 mm
- Antibacterial and antislip grating
- With removable Inoxsystem® Total
Hygienic cup shaped odor trap
- Removable rat proof filter basket
- See page 12 and 13 for other types of channels
By removing both filter basket and internal pipe the wastewater flows and the floor drain should be thoroughly cleaned.
It is highly recommended to fill the floor drain with water after cleaning in order to stop smells from coming back up.
It is highly recommended to fill the floor drain with water after cleaning in order to stop smells from coming back up.
