Select the catalog page:
Pag 57 - Total Hygienic channel with grated gullies
General Catalogue #20
Catalog page
Page 57 of 60

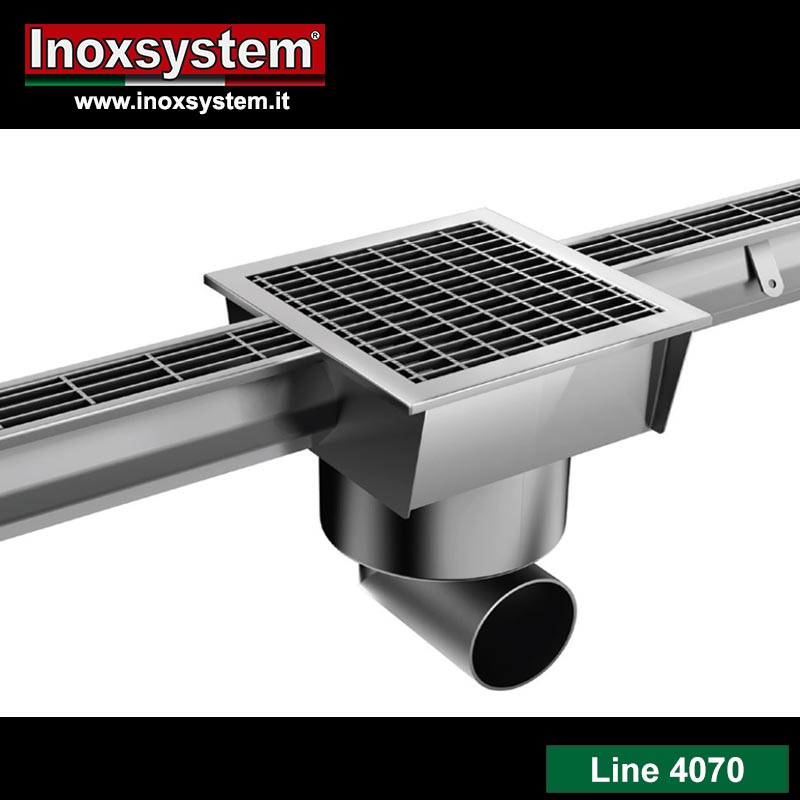

Line 4070

Technical details:
- Inoxsystem® Total Hygienic channel
- Satin finished top edge
- Antibacterial and antislip grating, mesh 13x80 mm h 20 mm
- 300x300 mm gully with grating, outlet Ø 110 mm
- With removable Inoxsystem® Total Hygienic internal odor trap pipe
- Removable rat proof filter basket
- See page 49 for other types of channels

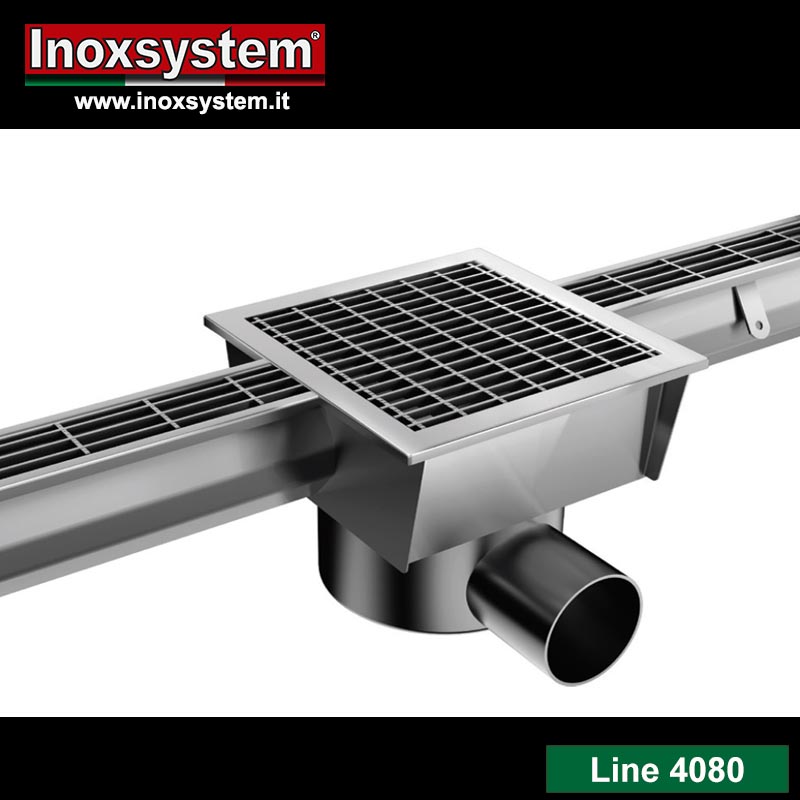

Line 4080

Technical details:
- Inoxsystem® Total Hygienic channel
- Satin finished top edge
- Antibacterial and antislip grating, mesh 13x80 mm h 20 mm
- 300x300 mm gully with grating, outlet Ø 110 mm
- With removable Inoxsystem® Total Hygienic internal cup shaped odor trap
- Removable rat proof filter basket
- See page 49 for other types of channels
By removing both filter basket and internal pipe the wastewater flows and the floor drain should be thoroughly cleaned.
It is highly recommended to fill the floor drain with water after cleaning in order to stop smells from coming back up.

Total Hygienic channel with grated gullies in stainless steel
