Page 17: Gullies suitable for channels with grating
General Catalogue #20
Page 17 of 60

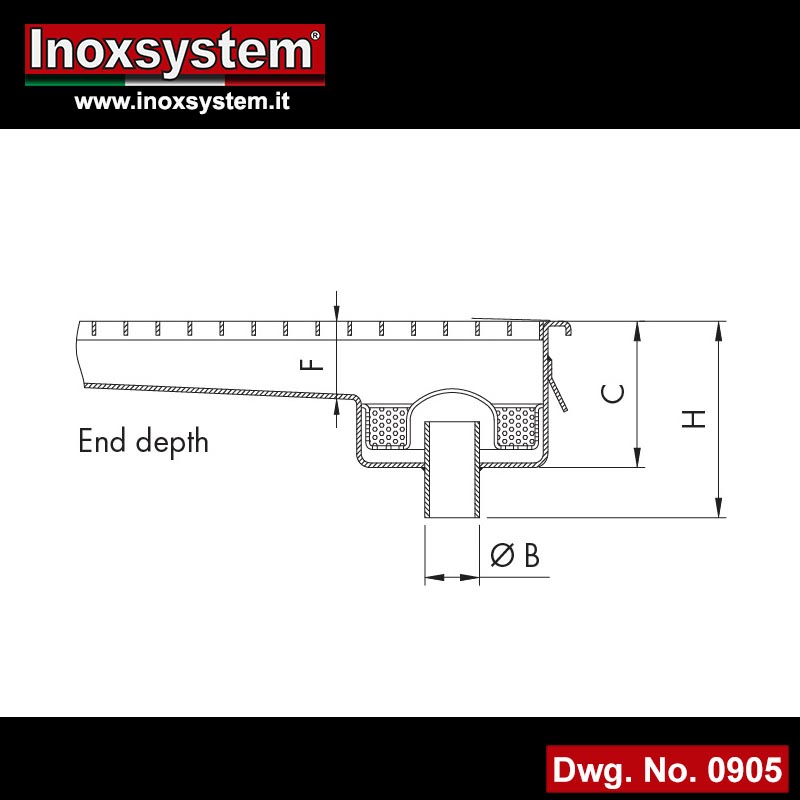

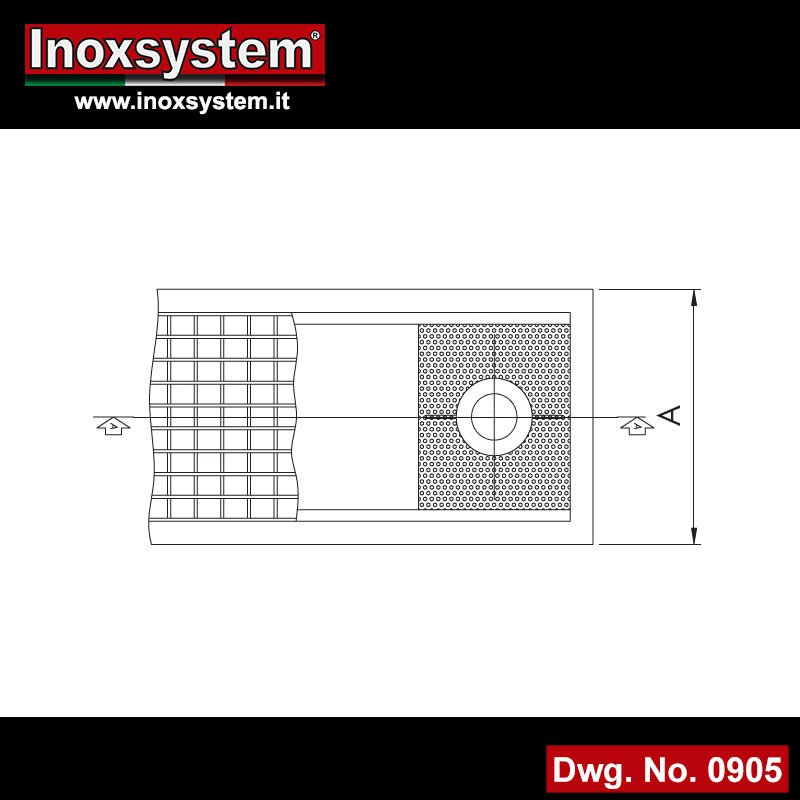

Round body gully welded to the channel body with filter basket incorporated into the bell trap and vertical outlet

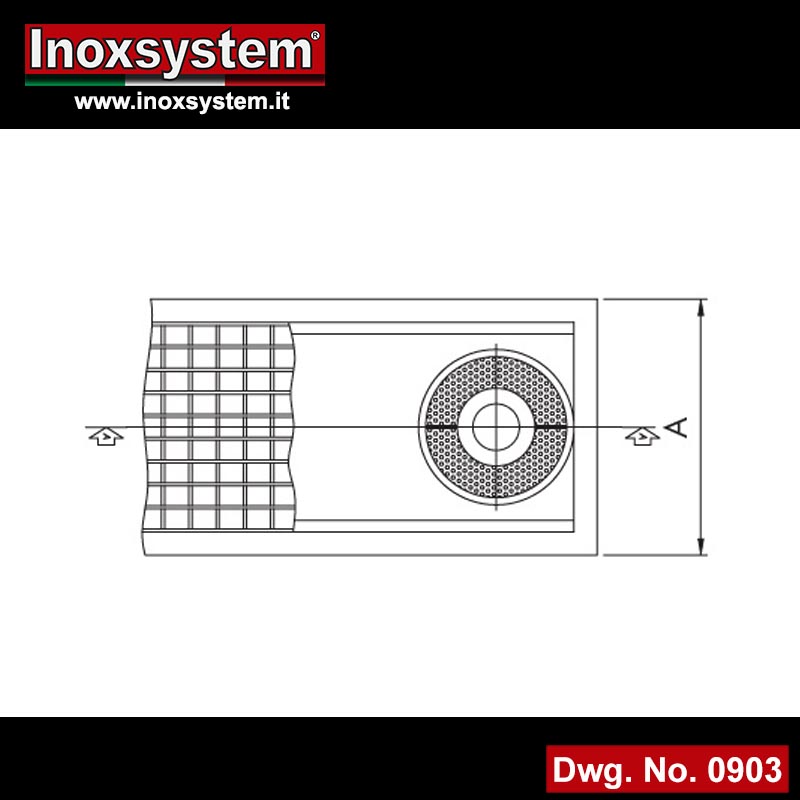

Round body gully welded to the channel body with filter basket incorporated in stainless steel vertical outlet

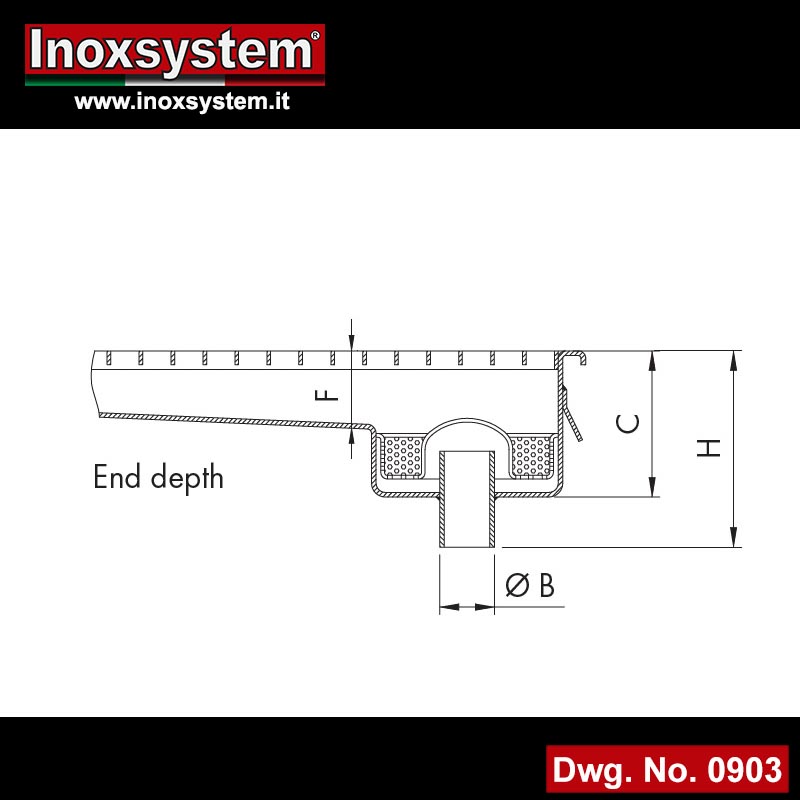

Round body gully welded to the channel body with filter basket incorporated in stainless steel
| ARTICLE (Gully) |
A | Ø B | C | H |
| Dimensions in mm: | ||||
| PCTV63 |
100 |
/ | / | / |
| 150 | / | / | / | |
| 200 | 63 | F+60 | C+60 | |
| 250 | 63 | F+60 | C+60 | |
| 300 | 63 | F+60 | C+60 | |
| 350 | 63 | F+60 | C+60 | |
| 400 | 63 | F+60 | C+60 | |
| 450 | 63 | F+60 | C+60 | |
| 500 | 63 | F+60 | C+60 | |
| ARTICLE (Gully) |
A | Ø B | C | H |
| Dimensions in mm: | ||||
| PCTV110 |
100 |
/ | / | / |
| 150 | / | / | / | |
| 200 | / | / | / | |
| 250 | / | / | / | |
| 300 | 110 | F+60 | C+60 | |
| 350 | 110 | F+60 | C+60 | |
| 400 | 110 | F+60 | C+60 | |
| 450 | 110 | F+60 | C+60 | |
| 500 | 110 | F+60 | C+60 | |

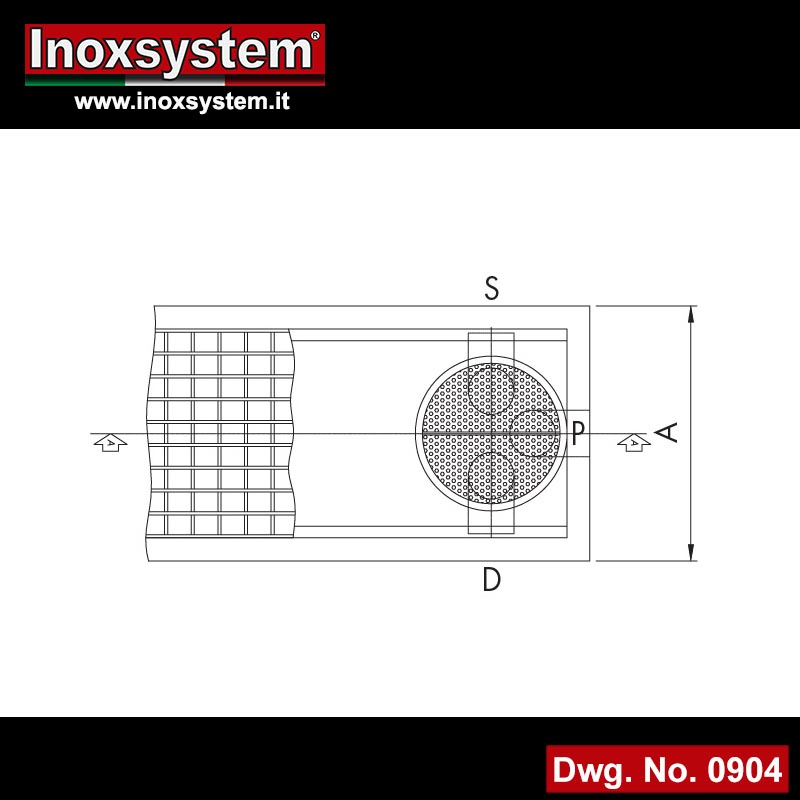

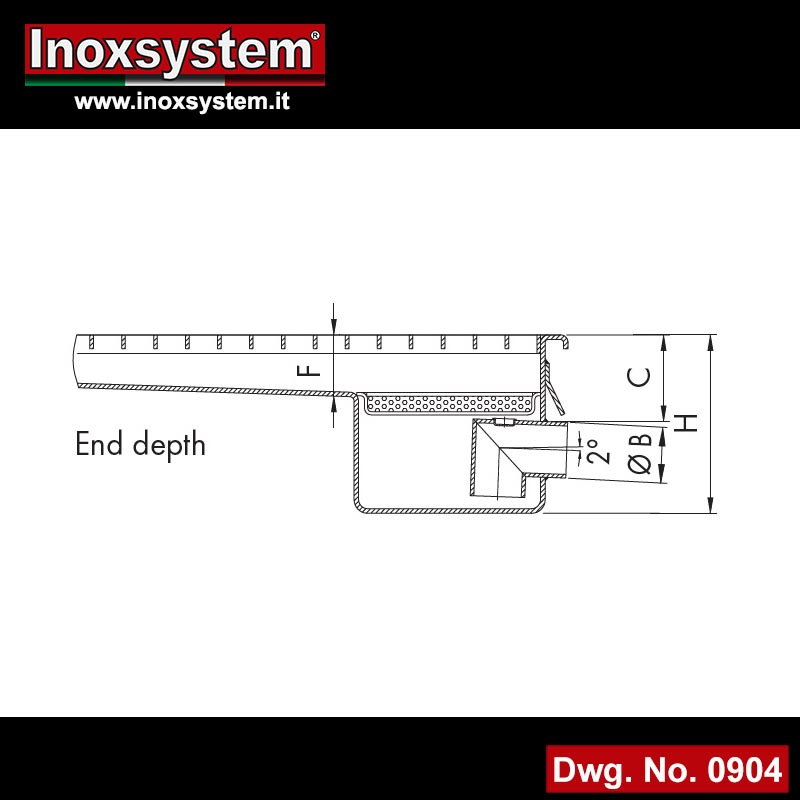

Round body gully welded to the channel body with filter basket and horizontal outlet
Round body gully welded to the channel body with filter basket and horizontal outlet
Dwg Round body gully welded to the channel body with filter basket and horizontal outlet
| ARTICLE (Gylly) |
A | Ø B | C | H |
| Dimensions in mm: | ||||
| PCTO63 |
100 |
/ | / | / |
| 150 | / | / | / | |
| 200 | 63 | F+20 | F+100 | |
| 250 | 63 | F+20 | F+100 | |
| 300 | 63 | F+20 | F+100 | |
| 350 | 63 | F+20 | F+100 | |
| 400 | 63 | F+20 | F+100 | |
| 450 | 63 | F+20 | F+100 | |
| 500 | 63 | F+20 | F+100 | |
| ARTICLE (Gully) |
A | Ø B | C | H |
| Dimensions in mm: | ||||
| PCTO110 |
100 |
/ | / | / |
| 150 | / | / | / | |
| 200 | / | / | / | |
| 250 | / | / | / | |
| 300 | 110 | F+20 | F+210 | |
| 350 | 110 | F+20 | F+210 | |
| 400 | 110 | F+20 | F+210 | |
| 450 | 110 | F+20 | F+210 | |
| 500 | 110 | F+20 | F+210 | |

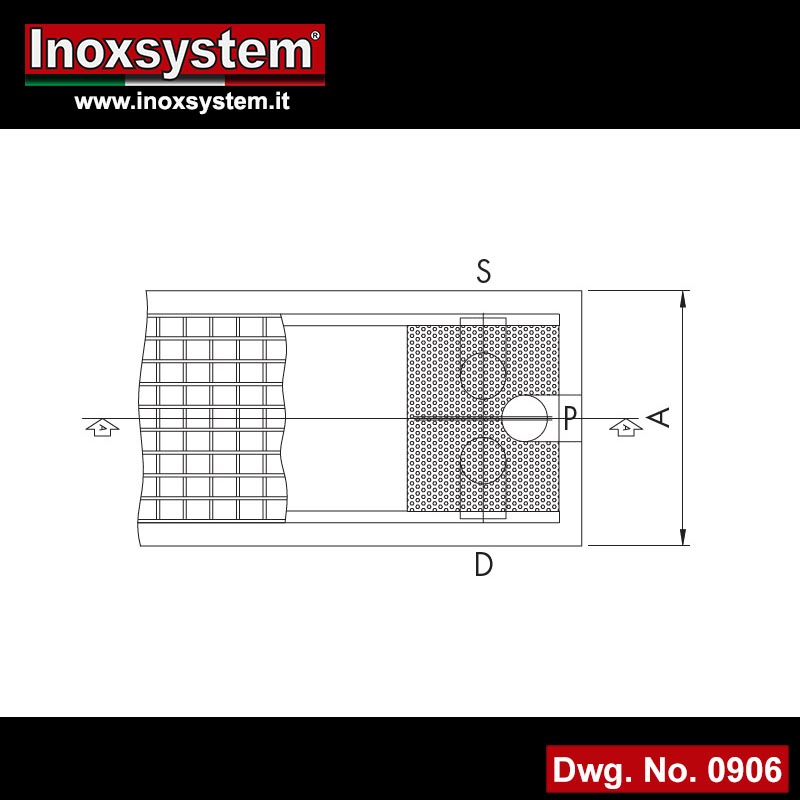

Square body gully welded to the channel body with filter basket incorporated into the bell trap and vertical outlet
square body gully welded to the channel body with filter basket incorporated into the bell trap and vertical outlet
Dwg square body gully welded to the channel body with filter basket incorporated into the bell trap and vertical outlet
| ARTICLE (Gully) |
A | Ø B | C | H |
| Dimensions in mm: | ||||
| PCVS63 / PCVS110 |
100 |
/ | / | / |
| 150 | 63 | F+60 | C+60 | |
| 200 | 110 | F+60 | C+60 | |
| 250 | 110 | F+60 | C+60 | |

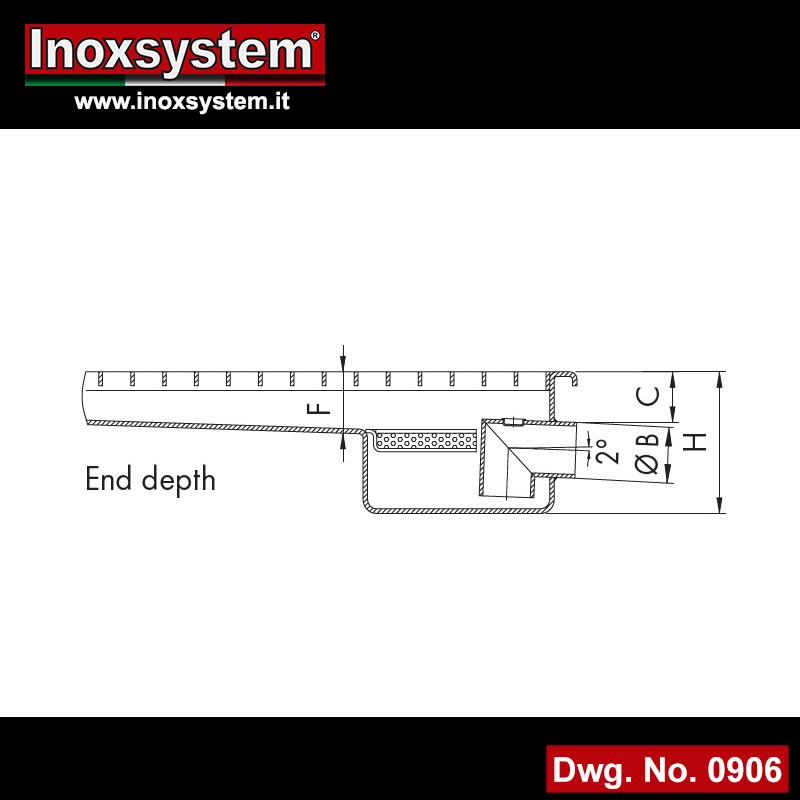

Square body gully welded to the channel body with filter basket and horizontal outlet
square body gully welded to the channel body with filter basket and horizontal outlet
square body gully welded to the channel body with filter basket and horizontal outlet
| ARTICLE (Floor drain) |
A | Ø B | C | H |
| Dimensions in mm: | ||||
| PCSO63 |
100 |
/ | / | / |
| 150 | 63 | 35 | 140 | |
| 200 | 63 | 35 | 140 | |
| 250 | 63 | 35 | 140 | |
| 300 | 63 | 35 | 140 | |
| 350 | 63 | 35 | 140 | |
| 400 | 63 | 35 | 140 | |
| 450 | 63 | 35 | 140 | |
| 500 | 63 | 35 | 140 | |
| ARTICLE (Floor drain) |
A | Ø B | C | H |
| Dimensions in mm: | ||||
| PCSO110 |
100 |
/ | / | / |
| 150 | / | / | / | |
| 200 | 110 | 50 | 220 | |
| 250 | 110 | 50 | 220 | |
| 300 | 110 | 50 | 220 | |
| 350 | 110 | 50 | 220 | |
| 400 | 110 | 50 | 220 | |
| 450 | 110 | 50 | 220 | |
| 500 | 110 | 50 | 220 | |
Floor drain with square top cover, vertical outlet and filter basket incorporated into the bell trap, provided with one floor drain-channel connection
floor drain with square top cover, vertical outlet and filter basket incorporated
Dwg floor drain with square top cover, vertical outlet and filter basket incorporated
| ARTICLE | øA | øB | C | |
| DIMENSIONS in mm: | ||||
| RCV110CE258 | 250 | 110 | 140 | Lowered |
| RCV63CE308 | 300 | 63 | 140 | Lowered |
| CV104CE308 | 300 | 104 | 220 | |
| CV110CE308 | 300 | 110 | 220 | Recommended |
| CV110CE358 | 350 | 160 | 250 | Increased |
N.B.: gullies with a depth water seal (dimension D) of 50 mm are in compliance with standard UNI EN 1253-1

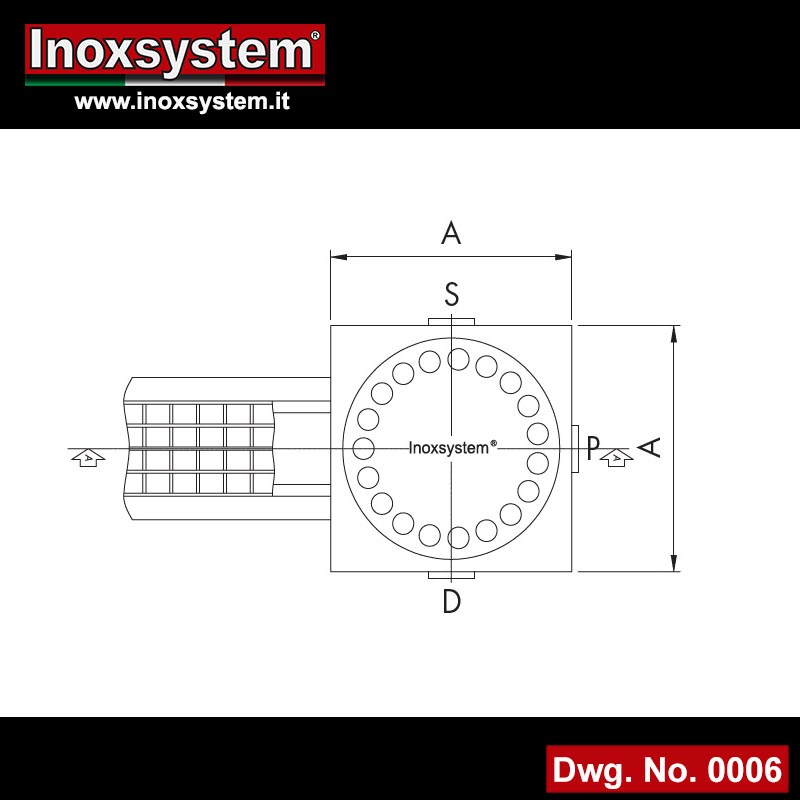

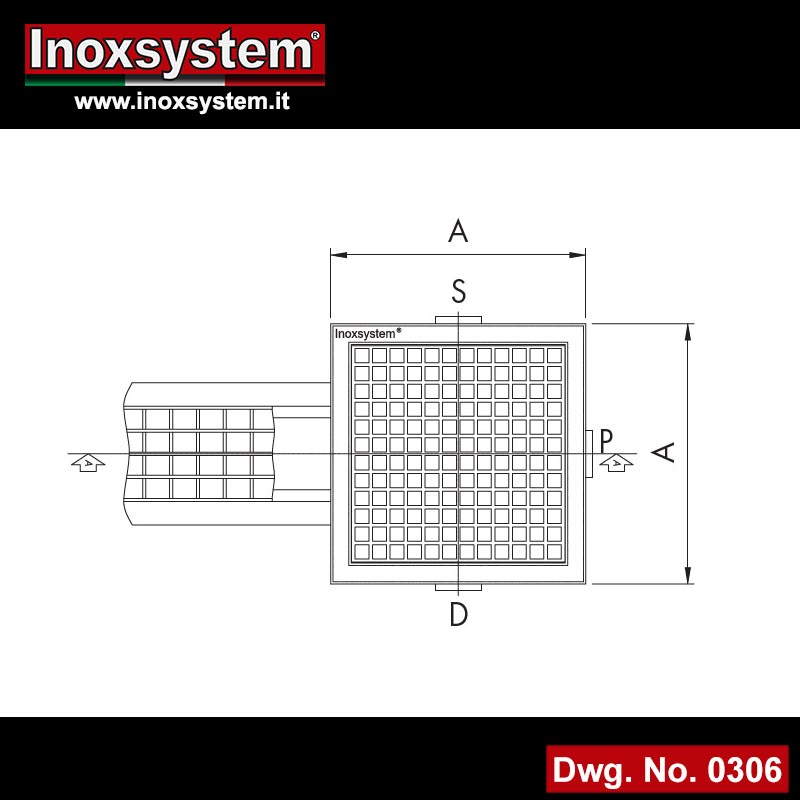

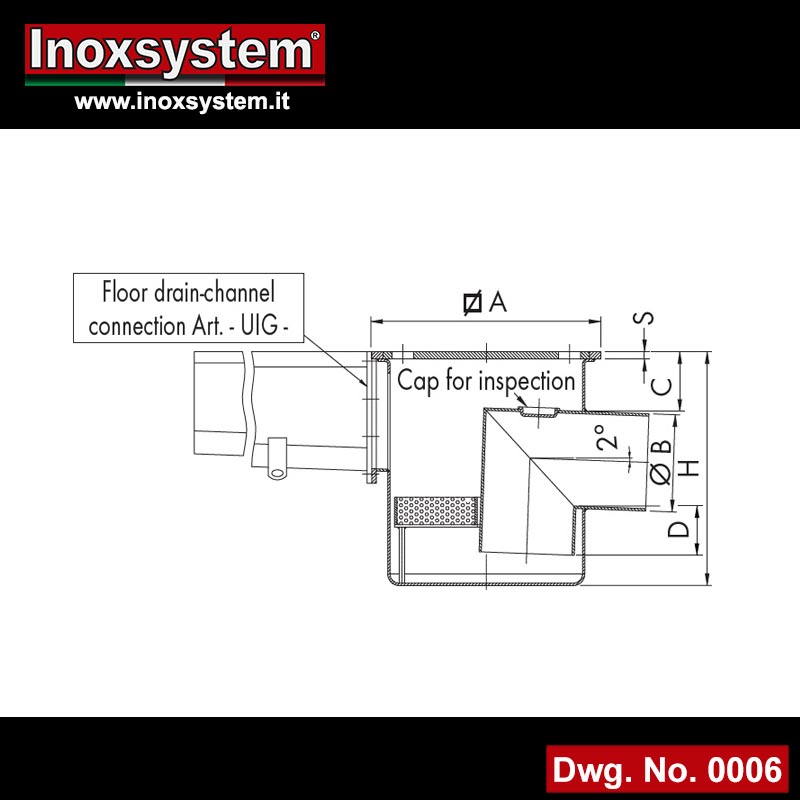

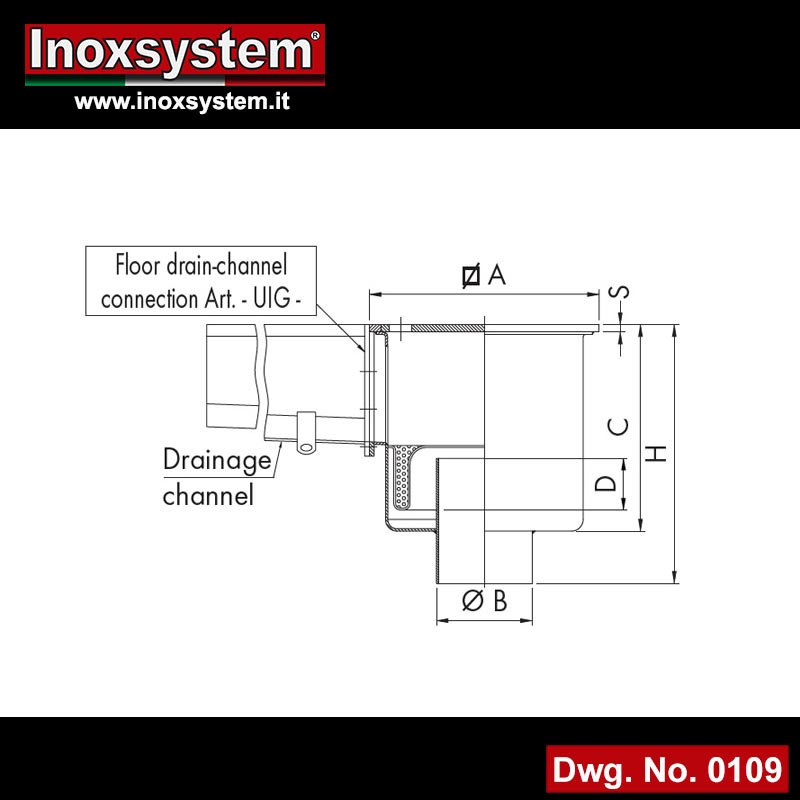

Floor drain with square top cover, horizontal outlet and filter basket, provided with one floor drain-channel connection
floor drain with square top cover, horizontal outlet and filter basket
Dwg floor drain with square top cover, horizontal outlet and filter basket
| ARTICLE | øA | øB | C | |
| DIMENSIONS in mm: | ||||
| CLR50156 | 150 | 50 | 40 | Lowered |
| CLR63206 | 200 | 63 | 30 | Lowered |
| CLR104258 | 250 | 104 | 50 | |
| CLR63308 | 300 | 63 | 35 | Lowered |
| CLR104308 | 300 | 104 | 50 | |
| CLR110308 | 300 | 110 | 50 | Recommended |
| CLR160358 | 350 | 160 | 50 | Increased |

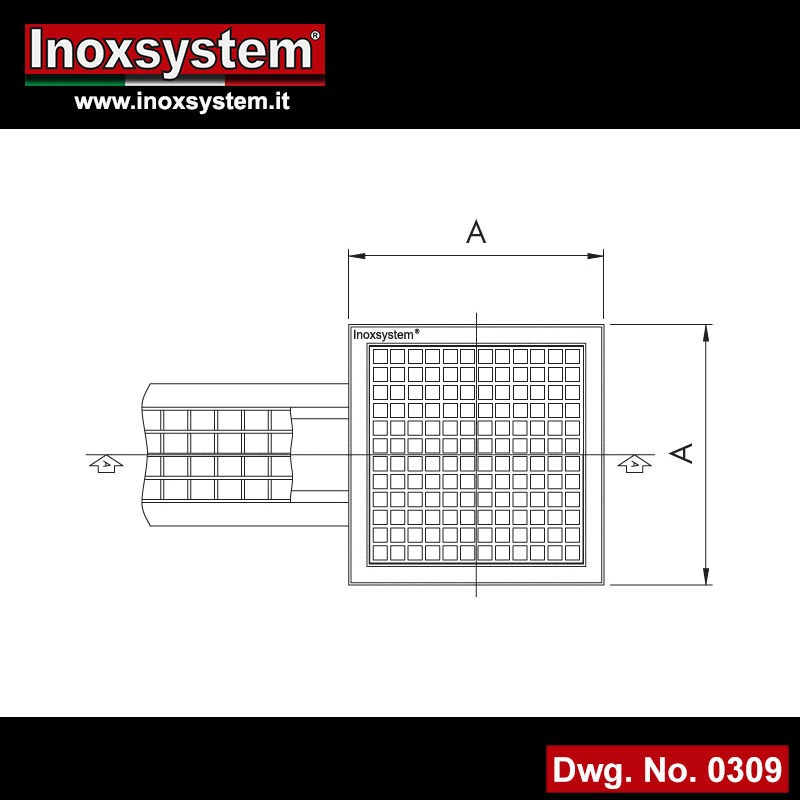

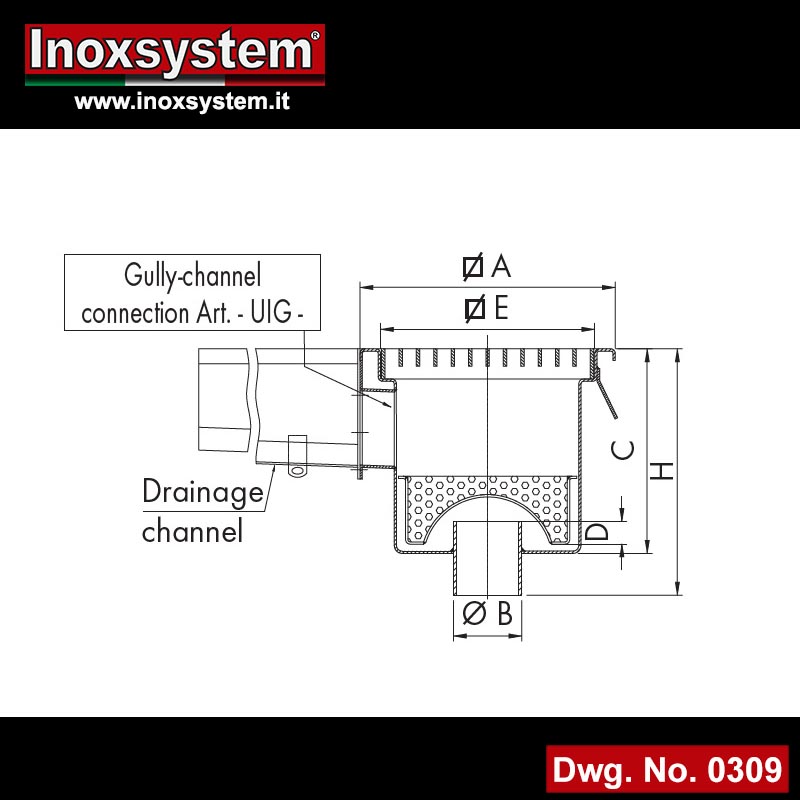

Gully with grating, vertical outlet and filter basket incorporated into the bell trap, provided with one gully-channel connection
gully with grating, vertical outlet and filter basket incorporated into the bell trap
Dwg gully with grating, vertical outlet and filter basket incorporated into the bell trap
| ARTICOLO | øA | øB | C | |
| MISURE in mm: | ||||
| RCGV30063 | 300 | 63 | 140 | Lowered |
| RCGV40063 | 400 | 63 | 140 | Lowered |
| RCGV50063 | 500 | 63 | 140 | Lowered |
| CGV300110 | 300 | 110 | 220 | |
| CGV400110 | 400 | 110 | 220 | |
| CGV500110 | 500 | 110 | 220 | |
N.B.: Gullies with a depth water seal (dimension D) of 50 mm are in compliance with standard UNI EN 1253-1

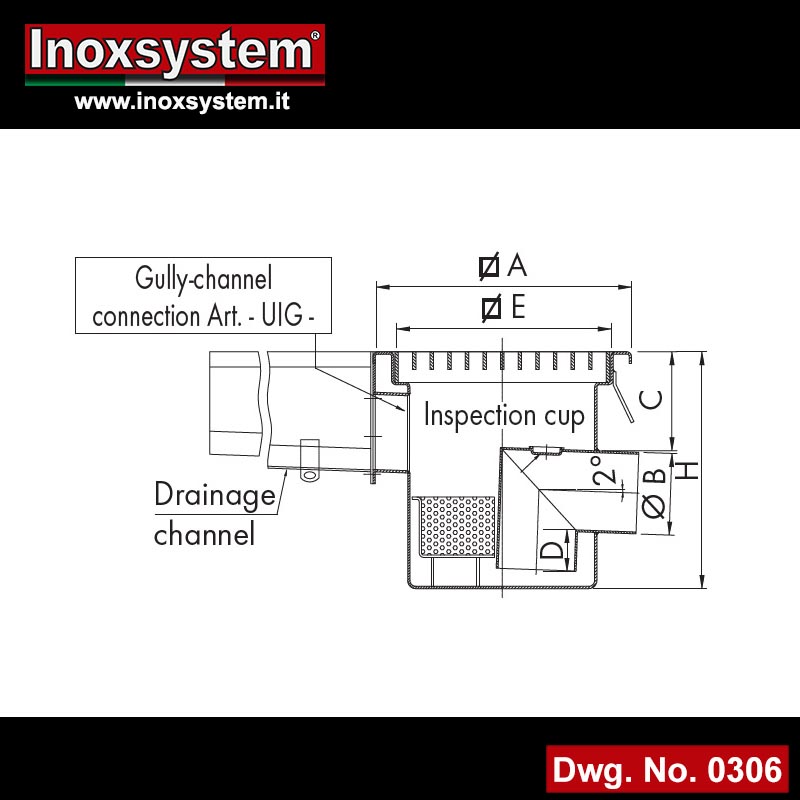

Gully with grating, horizonatal outlet and filter basket, provided with one gully-channel connection
gully with grating, horizonatal outlet and filter basket
Dwg gully with grating, horizonatal outlet and filter basket
| ARTICLE | øA | øB | C | |
| DIMENSIONS in mm: | ||||
| RCGL30063 | 300 | 63 | 37 | Lowered |
| RCGL40063 | 400 | 63 | 37 | Lowered |
| RCGL50063 | 500 | 63 | 37 | Lowered |
| CGL300110 | 300 | 110 | 50 | |
| CGL400110 | 400 | 110 | 50 | |
| CGL500110 | 500 | 110 | 50 | |
N.B.: Gullies with a depth water seal (dimension D) of 50 mm are in compliance with standard UNI EN 1253-1
-
* Dimensions can be modified on request.
-
* These technical drawings are property of INOXSYSTEM
® and cannot be copied or reproduced without our prior written permission.
