Linear and square Dwg. N° 0853 Standard Gratings in Stainless Steel
Dwg. N° 0853 - applicable on all Inoxsystem® channel and grated gullies articles
Inoxsystem® Linear Grating 0853
Product Details
Technical specifications of linear standard gratings:
- 2 mm thick
- Mesh 25x22
- Bearing bar 25x2
- Cross bar 10x2
- Height 25 mm
- In pieces of 1000 mm
- Finishing treatment: pickling
- Entirely made of AISI 304 stainless steel (316 upon request)
Recommended for industrial cooking appliances, restaurant’s kitchens and food processing departments.
Important: Inoxsystem ® stainless steel gratings can be customized upon request, with construction drawings studied in collaboration with our technicians. They can satisfy the most varied installation requirements.
Linear Grating 0853
ARTICLE | Dimensions | Mesh | Height |
Dimensions in mm: | |||
085365 | 65x1000 | 25x22 | 25 |
0853100 | 100x1000 | 25x22 | 25 |
0853150 | 150x1000 | 25x22 | 25 |
0853200 | 200x1000 | 25x22 | 25 |
0853250 | 250x1000 | 25x22 | 25 |
0853300 | 300x1000 | 25x22 | 25 |
0853350 | 350x1000 | 25x22 | 25 |
0853400 | 400x1000 | 25x22 | 25 |
0853450 | 450x1000 | 25x22 | 25 |

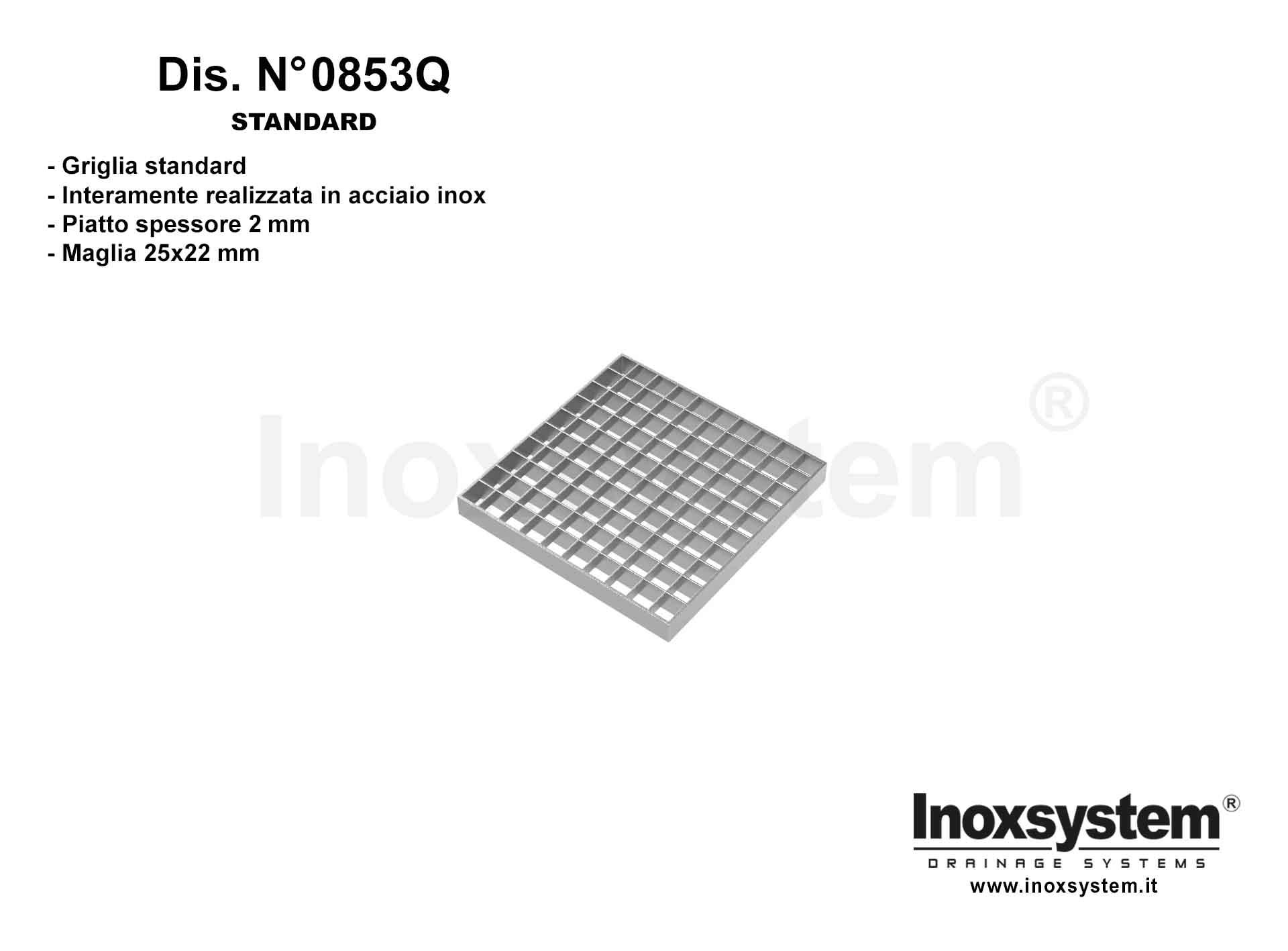

Inoxsystem® Square Grating 0853Q
Product Details
Technical specifications of square standard gratings:
- 2 mm thick
- Mesh 25x22
- Bearing bar 25x2
- Cross bar 10x2
- Height 25 mm
- Into square-shaped pieces
- Finishing treatment: pickling
- Entirely made of AISI 304 stainless steel (316 upon request)
Recommended for industrial cooking appliances, restaurant’s kitchens and food processing departments.
Important: Inoxsystem ® stainless steel gratings can be customized upon request, with construction drawings studied in collaboration with our technicians. They can satisfy the most varied installation requirements.
Square Grating 0853Q
ARTICLE | Dimensions | Mesh | Height |
Dimensions in mm: | |||
0853100Q | 100x100 | 25x22 | 25 |
0853150Q | 150x150 | 25x22 | 25 |
0853200Q | 200x200 | 25x22 | 25 |
0853250Q | 250x250 | 25x22 | 25 |
0853300Q | 300x300 | 25x22 | 25 |
0853350Q | 350x350 | 25x22 | 25 |
0853400Q | 400x400 | 25x22 | 25 |
0853450Q | 450x450 | 25x22 | 25 |
