Linear and square Dwg. N° 0671 Total Hygienic multi-slot anti-heel design grating mesh 240x8
Dwg. N° 0671 - applicable on all Inoxsystem® channel and grated gullies articles
Inoxsystem® Linear Grating 0671

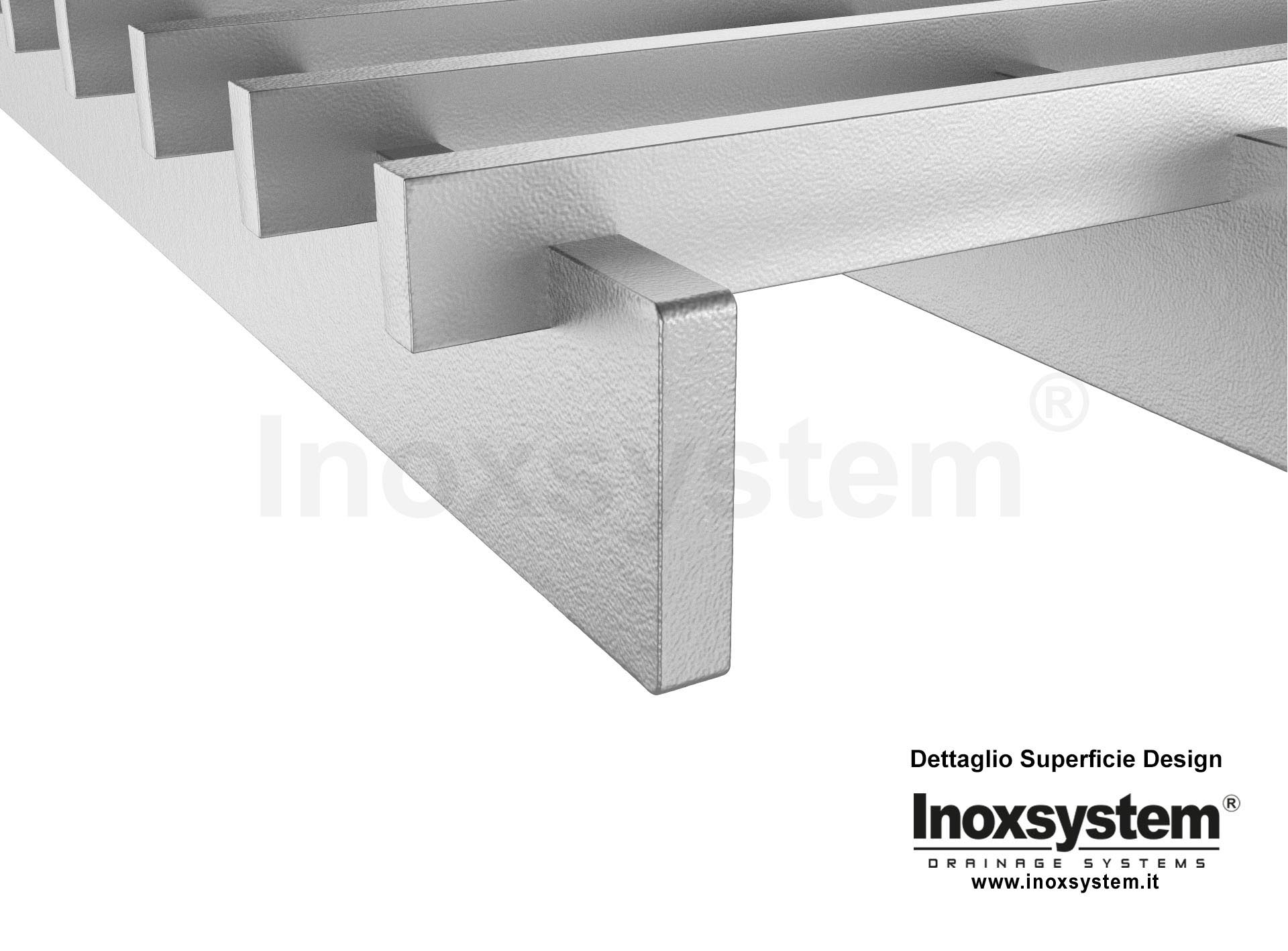

Mesh detail 1
Mesh detail 2
Product Details
Technical details Linear “Total Hygienic MULTI-SLOT ANTI-HEALT DESIGN grating” mesh 240x8:
- Thickness (S) 4 mm
- Mesh (AxB) mm 240X8
- Load- bearing plate (HxS) mm 21X4
- Connection plate (H1xS1) mm 10X4
- Height 25 mm (H) (Other heights available upon request)
- In pieces of 1000 mm (D2)
- Finishing treatment: inox micro shot peening
- Entirely made of stainless steel AISI 304L (AISI 316L upon request)
- Antibacterial without banding bar
- Ideal for Inoxsystem® grating channel
Highly recommended for solutions where important sanitary and hygienic performances are required, such as terraces, swimming pools, wellness centres.
Important: Inoxsystem® stainless steel gratings can be customized upon request, with construction drawings studied in collaboration with our technicians. They can satisfy the most varied installation requirements.
Linear Grating 0671
| ARTICLE | Dimensions |
Mesh |
Height |
| Dimensions in mm: | |||
| 067165 | 65x1000 | 240x8 | 25 |
| 0671100 | 100x1000 | 240x8 | 25 |
| 0671150 | 150x1000 | 240x8 | 25 |
| 0671200 | 200x1000 | 240x8 | 25 |
| 0671250 | 250x1000 | 240x8 | 25 |
| 0671300 | 300x1000 | 240x8 | 25 |
| 0671350 | 350x1000 | 240x8 | 25 |
| 0671400 | 400x1000 | 240x8 | 25 |
| 0671450 | 450x1000 | 240x8 | 25 |
Inoxsystem® Square Grating 0671Q
Mesh detail 1
Mesh detail 2
Product Details
Technical details Square “Total Hygienic MULTI-SLOT ANTI-HEALT DESIGN grating” mm 8:
- Thickness (S) 4 mm
- Multi-slot mesh mm 8
- Load- bearing plate (HxS) mm 21X4
- Connection plate (H1xS1) mm 10X4
- Height 25 mm (H) (Other heights available upon request)
- Into square-shaped pieces (D2)
- Finishing treatment: inox micro shot peening
- Entirely made of stainless steel AISI 304L (AISI 316L upon request)
- Antibacterial without banding bar
- Ideal for Inoxsystem® grating channel
Highly recommended for solutions where important sanitary and hygienic performances are required, such as terraces, swimming pools, wellness centres.
Important: Inoxsystem® stainless steel gratings can be customized upon request, with construction drawings studied in collaboration with our technicians. They can satisfy the most varied installation requirements.
Square Grating 0671Q
| ARTICLE | Dimensions |
Mesh |
Height |
| Dimensions in mm: | |||
| 0671100Q | 100x100 | 76x8 | 25 |
| 0671150Q | 150x150 | 124x8 | 25 |
| 0671200Q | 200x200 | 174x8 | 25 |
| 0671250Q | 250x250 | 111x8 | 25 |
| 0671300Q | 300x300 | 136x8 | 25 |
| 0671350Q | 350x350 | 158x8 | 25 |
| 0671400Q | 400x400 | 185x8 | 25 |
| 0671450Q | 450x450 | 209x8 | 25 |
