Linear and square Dwg. N° 0850 Closed grating with two side-slots, sheet thk. 8 mm, made of stainless steel
Dwg. N° 0850 - applicable on all Inoxsystem® channel and grated gullies articles
Inoxsystem® Linear Grating 0850
Product Details
Technical specifications of linear gratings with covering plate with double side slot:
- Heavy plate 8 mm thick
- Bearing square bar 15 mm, distance between square bars 200 mm
- Slot on both sides 10 mm
- Height 24 mm
- In pieces of 500 mm
- Finishing treatment: inox micro shot peening and/or mechanical pickling
- Entirely made of AISI 304 stainless steel (316 upon request)
Recommended for civil, industrial and food sectors.
The plate covers the base of the channel.
Designed to service applications subject to heavy rolling and static loads.
Important: Inoxsystem ® stainless steel gratings can be customized upon request, with construction drawings studied in collaboration with our technicians. They can satisfy the most varied installation requirements.
Linear Grating 0850
ARTICLE | Dimensions | Sheet S1xH1 | Height |
Dimensions in mm: | |||
085065 | 65x1000 | 40x8 | 25 |
0850100 | 100x500 | 76x8 | 25 |
0850150 | 150x500 | 126x8 | 25 |
0850200 | 200x500 | 176x8 | 25 |
0850250 | 250x500 | 226x8 | 25 |
0850300 | 300x500 | 276x8 | 25 |
0850350 | 350x500 | 326x8 | 25 |
0850400 | 400x500 | 376x8 | 25 |
0850450 | 450x500 | 426x8 | 25 |

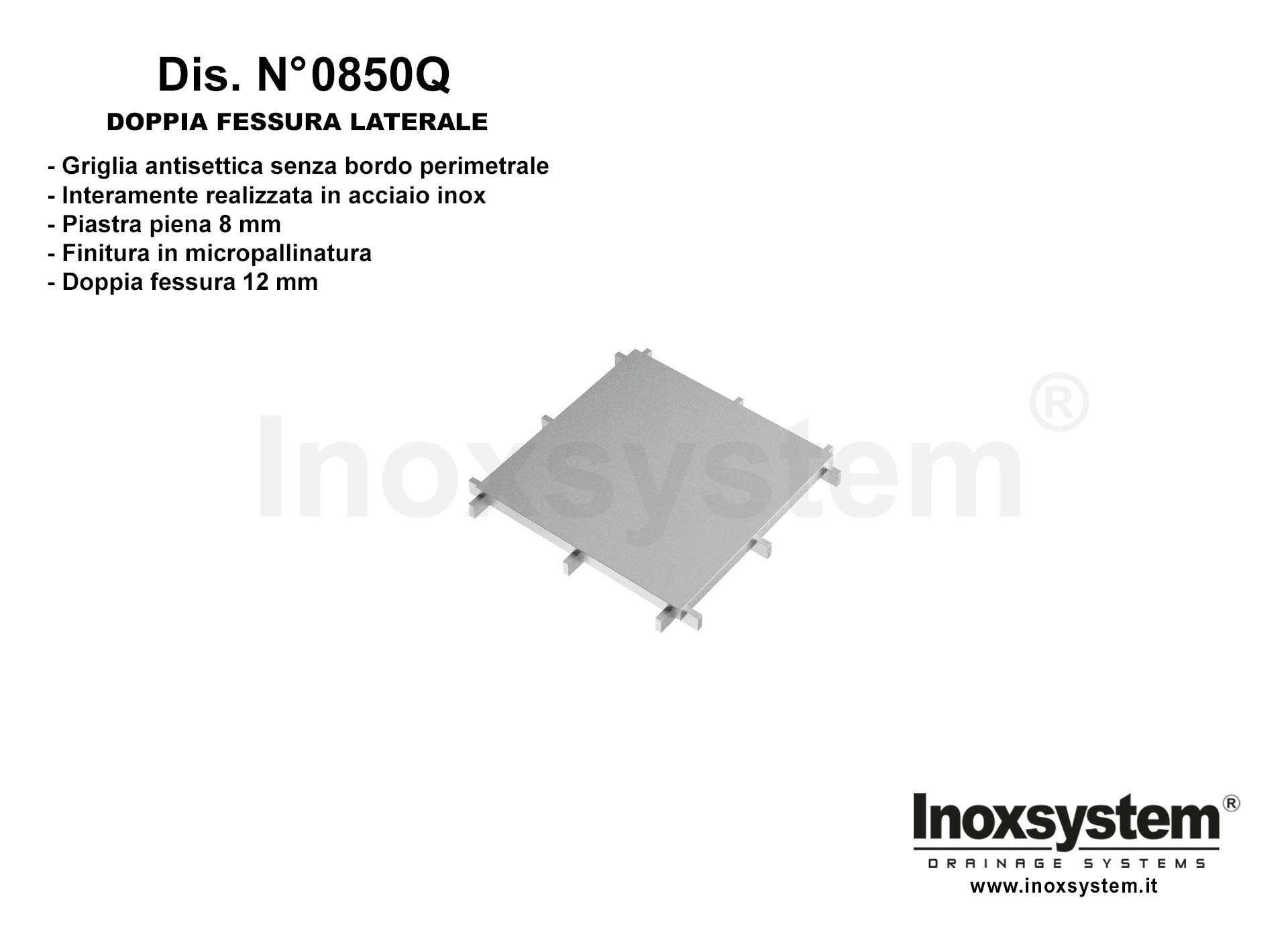

Inoxsystem® Square Grating 0850Q
Product Details
Technical specifications of square gratings with covering plate with double side slot:
- Heavy plate 8 mm thick
- Bearing square bar 15 mm, distance between square bars 200 mm
- Slot on both sides 10 mm
- Height 24 mm
- Into square-shaped pieces
- Finishing treatment: inox micro shot peening and/or mechanical pickling
- Entirely made of AISI 304 stainless steel (316 upon request)
Recommended for civil, industrial and food sectors.
The plate covers the base of the channel.
Designed to service applications subject to heavy rolling and static loads.
Important: Inoxsystem ® stainless steel gratings can be customized upon request, with construction drawings studied in collaboration with our technicians. They can satisfy the most varied installation requirements.
Square Grating 0850Q
ARTICLE | Dimensions | Sheet S1xH1 | Height |
Dimensions in mm: | |||
0850100Q | 100x100 | 76x8 | 25 |
0850150Q | 150x150 | 126x8 | 25 |
0850200Q | 200x200 | 176x8 | 25 |
0850250Q | 250x250 | 226x8 | 25 |
0850300Q | 300x300 | 276x8 | 25 |
0850350Q | 350x350 | 326x8 | 25 |
0850400Q | 400x400 | 376x8 | 25 |
0850450Q | 450x450 | 426x8 | 25 |
