Linear and square Dwg. N° 0853 Heel proof gratings in Stainless Steel
Dwg. N° 0854 - applicable on all Inoxsystem® channel and grated gullies articles
Inoxsystem® Linear Grating 0854
Product Details
Technical specifications of linear heel proof gratings:
- 2 mm thick
- Mesh 50x11
- Bearing bar 25x2
- Cross bar 10x2
- Height 25 mm
- In pieces of 1000 mm
- Finishing treatment: pickling
- Entirely made of AISI 304 stainless steel (316 upon request)
Recommended for swimming pools, showers and terraces.
Important: Inoxsystem ® stainless steel gratings can be customized upon request, with construction drawings studied in collaboration with our technicians. They can satisfy the most varied installation requirements.
Linear Grating 0854
ARTICLE | Dimensions | Mesh | Height |
Dimensions in mm: | |||
085465 | 65x1000 | 50x11 | 25 |
0854100 | 100x1000 | 50x11 | 25 |
0854150 | 150x1000 | 50x11 | 25 |
0854200 | 200x1000 | 50x11 | 25 |
0854250 | 250x1000 | 50x11 | 25 |
0854300 | 300x1000 | 50x11 | 25 |
0854350 | 350x1000 | 50x11 | 25 |
0854400 | 400x1000 | 50x11 | 25 |
0854450 | 450x1000 | 50x11 | 25 |

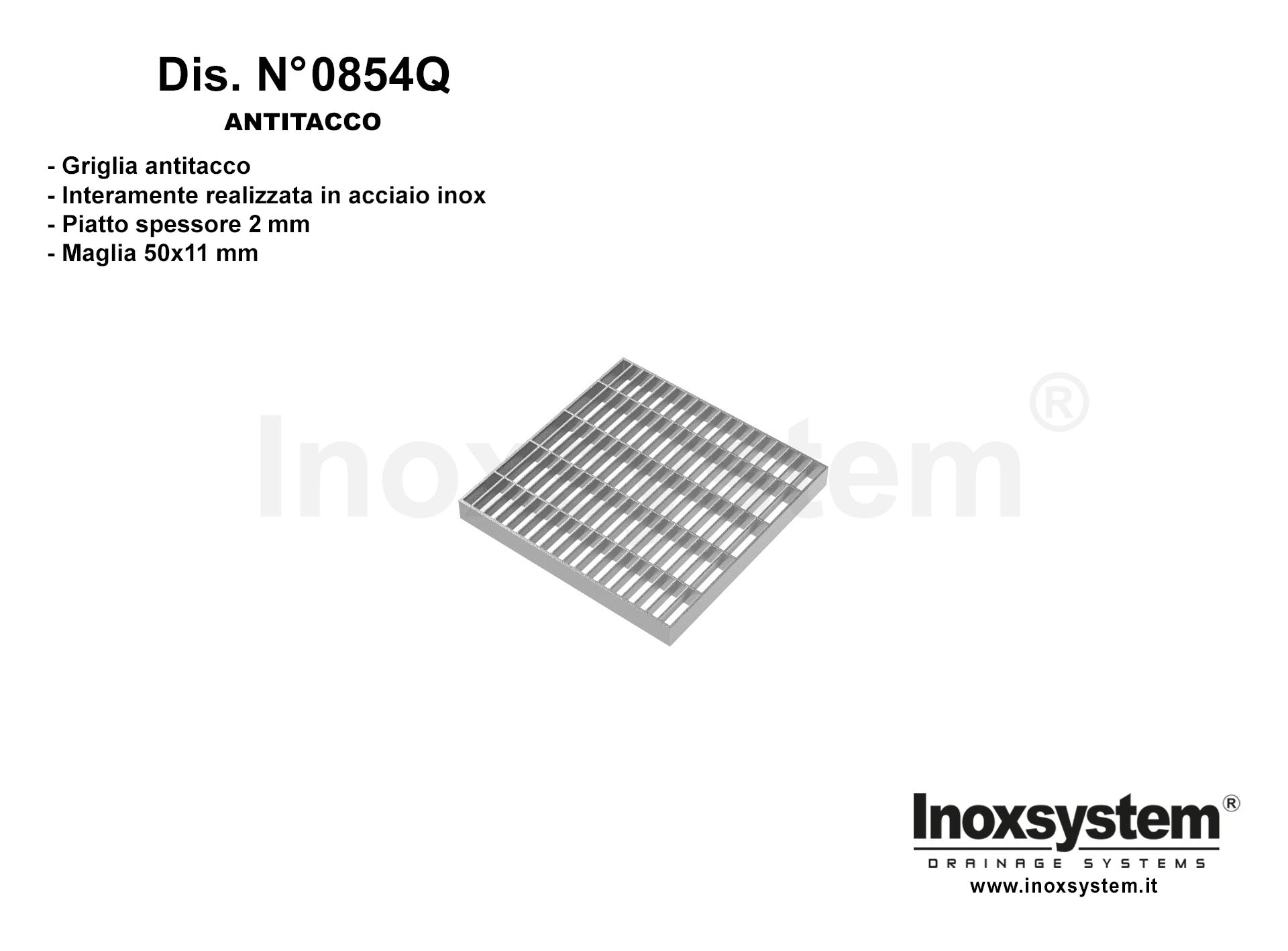

Inoxsystem® Square Grating 0854Q
Product Details
Technical specifications of square heel proof gratings:
- 2 mm thick
- Mesh 50x11
- Bearing bar 25x2
- Cross bar 10x2
- Height 25 mm
- Into square-shaped pieces
- Finishing treatment: pickling
- Entirely made of AISI 304 stainless steel (316 upon request)
Recommended for swimming pools, showers and terraces.
Important: Inoxsystem ® stainless steel gratings can be customized upon request, with construction drawings studied in collaboration with our technicians. They can satisfy the most varied installation requirements.
Square Grating 0854Q
ARTICLE | Dimensions | Mesh | Height |
Dimensions in mm: | |||
0854100Q | 100x100 | 50x11 | 25 |
0854150Q | 150x150 | 50x11 | 25 |
0854200Q | 200x200 | 50x11 | 25 |
0854250Q | 250x250 | 50x11 | 25 |
0854300Q | 300x300 | 50x11 | 25 |
0854350Q | 350x350 | 50x11 | 25 |
0854400Q | 400x400 | 50x11 | 25 |
0854450Q | 450x450 | 50x11 | 25 |
