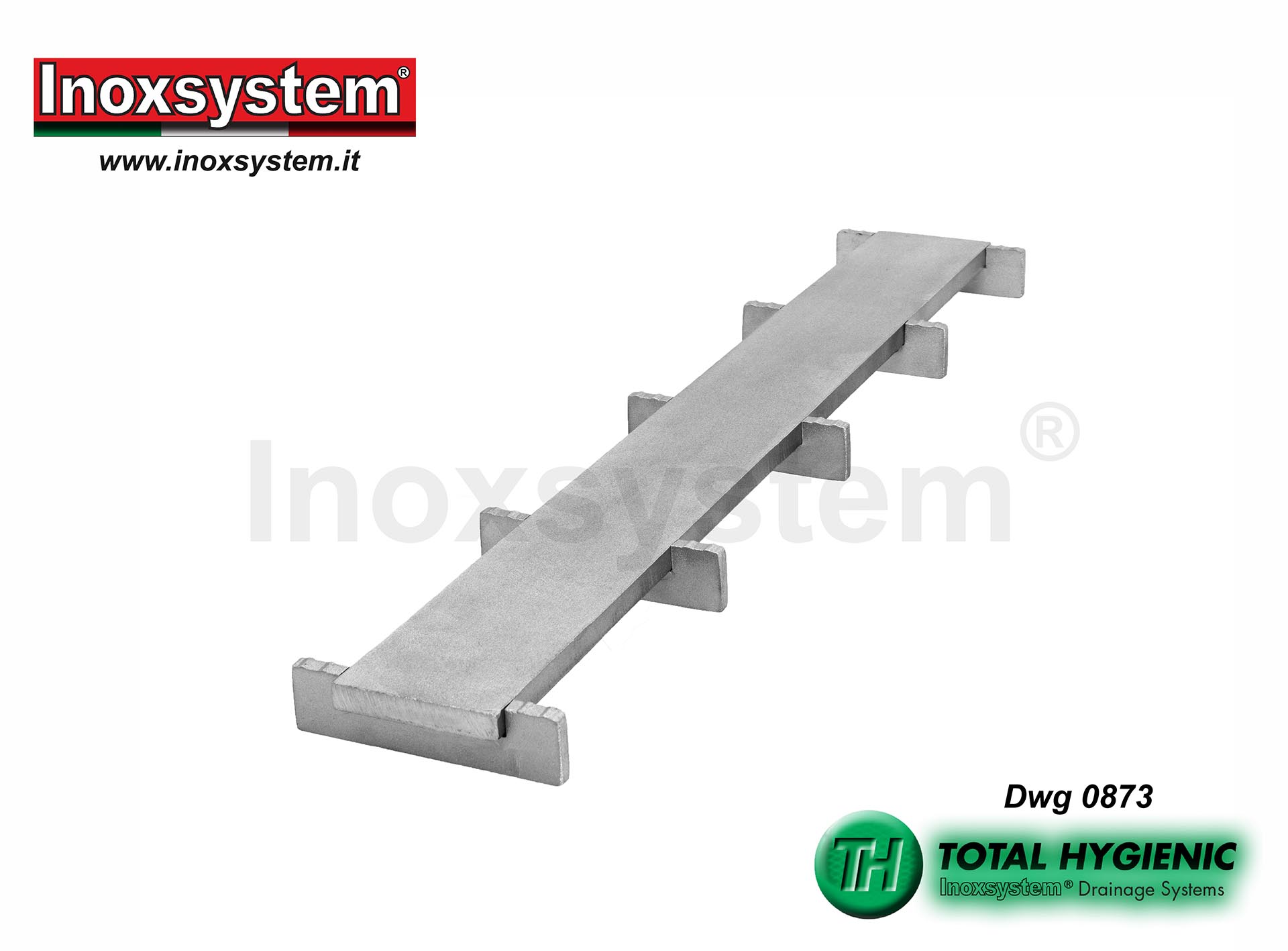

Inoxsystem® Total Hygienic double slot grating made of stainless steel – antibacterial and anti-slip

(See Dwg. 0873, General catalogue page 50 – section Inoxsystem® Total Hygienic)
Product Details

Inoxsystem® Total Hygienic Double Slot heavy duty grating, entirely made of 2 mm thick stainless steel grade 304 (grade 316 on request) with two slots of 12 mm along the long sides, is ideal for commercial kitchens, meat factories, dairies, oil mills, wineries, breweries, mineral water plants, bakeries, ice cream parlors, pharmaceutical plants.

It's frameless design along with large interal radii ensure the highest standards of hygiene preventing dirt from accumulating on the channel edge and eliminating bacteria growth.

ANTI-SLIP: thanks to special notches on the upper side of the bearing bars this grating meets anti-slip standard requirements.

Certifications: Inoxsystem® Total Hygienic channel with duble slot grating and reinforced edges (art. TH+BCR) is third party certified to 400 Kn loading - D400 load class in accordance with UNI en 1433 Standard

All Total Hygienic channels are supplied with multi-slot grating as standard.

Double slot grating available only upon request.

Important: All the stainless steel products manufactured by Inoxsystem® can be made custom, with technical drawings developed in collaboration with our technicians able to satisfy the widest range of installation requirements.

Stainless steel Hygienic double slot grating, antibacterial and anti-slip
