Inoxsystem® Total Hygienic Channels with antibacterial and ant-islip grating , floor drain with removable odor trap pipe and filter basket in stainless steel

(See general catalogue, page 56, Dwg. 4050)

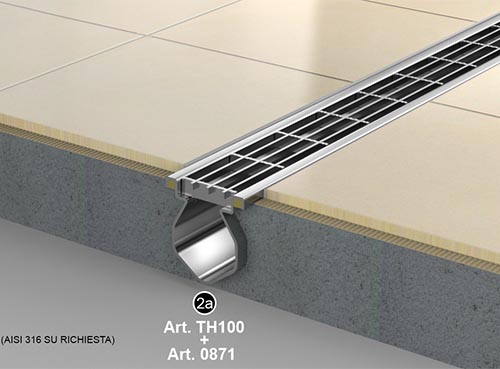

Installation example


Spec.

Render 3d

Product Details

Drainage channel Inoxsystem® Total Hygienic TH0871 entirely made from 2 mm thick grade 304 stainless steel (grade 316 on request).

Technical features:

  • satin finish edges
  • built-in slope
  • Inoxsystem® Total Hygienic grating with anti-slip serrated surface and frameless anti-bacterial design (different gratings available: multi-slot with serrated surface, double slot, multi-slot design and double slot design)
  • Bolted flange joints every 3 or 6 m (art. Inoxsystem® “FLCTH”)

On request we should provide:

  • top edge filled with three-component epoxy resin to provide greater rigidity to the channel (Inoxsystem® art. “BCR”), certified load class D400
  • 1/2" inlet socket to let water flush in and clean the drain (Inoxsystem® art. “IL”)

The channel is provided with a 300x300 mm floor drain with heavy duty top cover, plate thk. 8 mm, outlet Ø 110 mm. The odor trap pipe and insect and rat proof filter basket can be completely removed to allow a simple and accurate cleaning ensuring maximum hygiene.

The floor drain is provided with a vertical outlet (art. Inoxsystem® Total Hygienic “CV 110 308 E”) or horizontal outlet (art. Inoxsystem® Total Hygienic “CL 110 308 E”), in the center, at one end or off-centre if needed.



Certifications: Inoxsystem® Total Hygienic channel with multi-slot grating and reinforced edges (art. TH+BCR) is third party certified to 400 Kn loading - D400 load class in accordance with UNI EN 1433 Standard.

Important: All the stainless steel products manufactured by Inoxsystem® can be made custom, with technical drawings developed in collaboration with our technicians able to satisfy the widest range of installation requirements.

Render 3d

Move the mouse to rotate the product
For an exploded view of the product click i
For more information click the numbers
(if you have problems viewing the 3d render, we recommend the mobile phone version)
