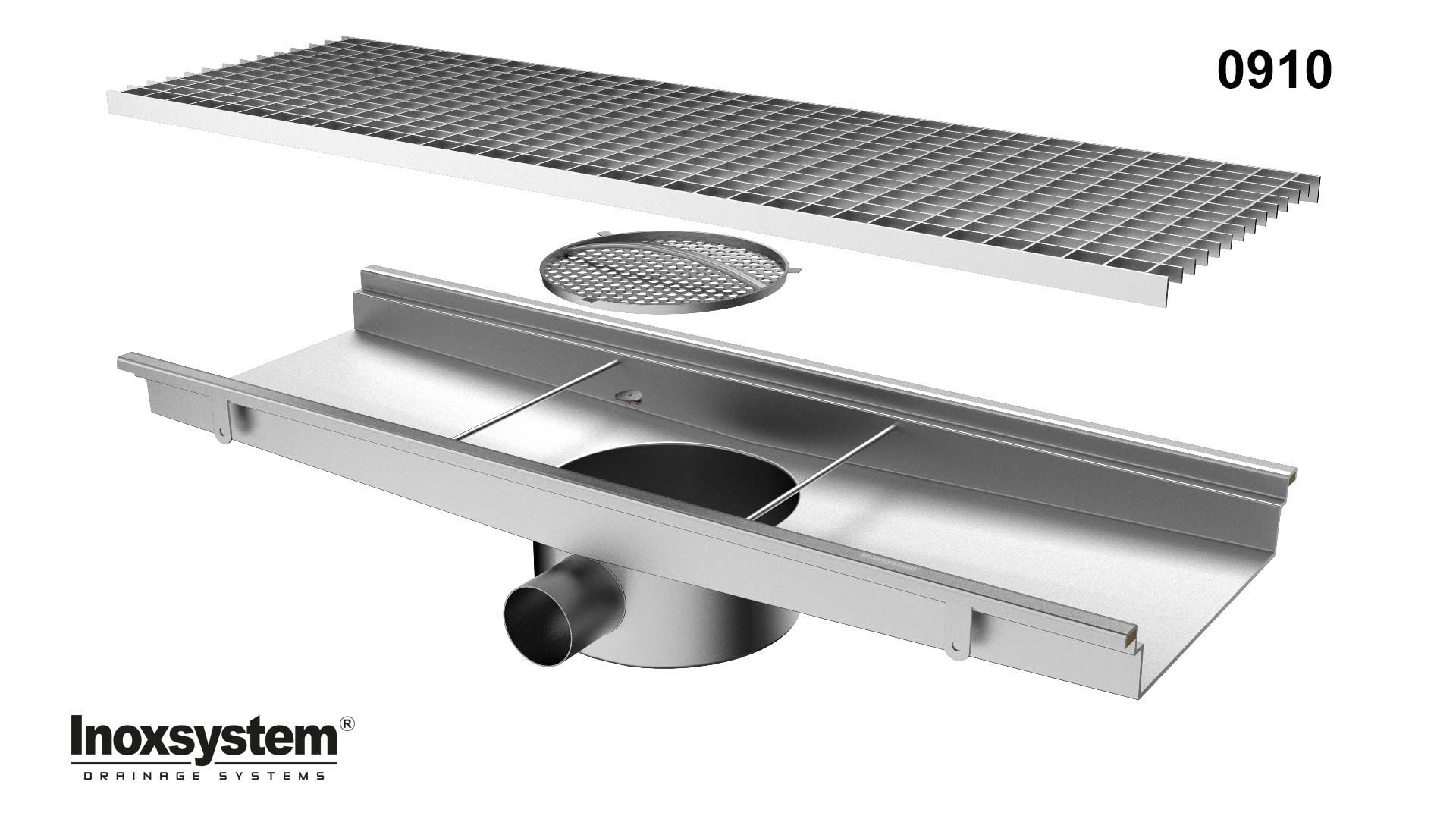

Standard stainless steel grating channels with siphoned outlet, outlet pipe ø 63 mm and removable filter basket
(See dwg. 0912-0913-0914-0915 on pages 12-13 of our catalogue)
Inoxsystem® Line 0910
Inoxsystem® Drainage system entirely made of grade 304 stainless steel, grade 316 on request, composed of: 2 mm thick channel body with grating (art. CGS…) fully inspectable with built-in slope and internal radii to improve cleaning performance, mounting brackets to fix the channel into the concrete, closely spaced reinforcement rods, removable grating mesh 25x22 mm- h 25 mm, reinforced edges (art. BGR) filled manually with three-component epoxy resin to make them stress resistant and suitable for heavy duty use and to speed up the laying of the channel, connection flanges (art. FLG) provided with silicone and fixing screws for easy transport, , welded on round gully with outlet Ø 63, odor trap and removable insect and rat proof filter. The gully should be with vertical outlet (art. RPSV) or horizontal outlet (art. RPSO). Certifications: Inoxsystem® channel body without grating with reinforced edges (art. CGS…+BGR) third party (Ecamricert s.r.l.) certified to 400 Kn loading - D400 load class in accordance with UNI en 1433 Standard. 200 mm wide Inoxsystem® channel body with reinforced edges and heavy duty ladder grating, bars 25x8 mm, (art. CGS20025+G0851+BGR) third party (Ecamricert s.r.l.) certified to 400 Kn loading - D400 load class in accordance with UNI en 1433 Standard
Made of stainless steel AISI 304 (or AISI 316 upon request), thickness of 2 mm. Ideal especially for restaurants, kitchens, food preparation areas and passages. The standard measures on catalogue are 1050mm, 2050mm and 3050mm available in a very short time. The cover grating can be standard with a 25x22 mesh, heel-guard 50x11 mesh, heavy bars 25x8 and double slot with surface in 6mm plate. The dimensions can vary depending on the needs of the customer. The channel is complete with a gully(also called floor drain or sump) welded underneath the channel and therefore not at sight, 63 mm Ø outlet pipe with filter basket for waste capturing, considered as insect and rat-proof. The gully can have a vertical outlet (Article Inoxsystem® "PSV") with a total standard height at the cup’s base of 130mm or horizontal outlet (Article Inoxsystem® "PSO") with a total standard height at the cup’s base of 160mm and can be positioned at the center, at the head or in a point of the channel defined by the customer.
Upon request you can have the edges of the channel pre-filled with our special self-attaching rigid resin (Art. Inoxsystem ® "BCR") in order to get the maximum traffic duty and robustness of the product and, thanks to the groups of connection flanges every 3 or 6 meters, depending on the transport needs (Art. Inoxsystem ® "FLC") can be produced custom with various lengths. We can also provide grafts for flushing of channel with diffusers ½” (art. Inoxsystem® “IL”).
Important: All stainless steel Inoxsystem® products can be made custom, with designed drawings in collaboration with our technicians, able to satisfy the widest range of installation requirements.
