Standard stainless steel slot channels with grated gully with siphoned outlet ø 110 mm and removable filter basket

(See dwg. 2251-2252-2253-2254, items articles out of catalogue)
Product Video

Spec.
Product Details

Entirely made of stainless steel AISI 304 (or 316 upon request), with a thickness of 2mm, this range is ideal especially for residential buildings, production areas, wineries, dairies, slaughterhouses, fish mongers etc… The standard center slot of the channel is 20mm, with a 60mm edge at sight and a channel drainage body of 65mm technically designed to be fully inspected at sight (art. Inoxsystem® C2 see catalogue at page 8, DWG. 2010).

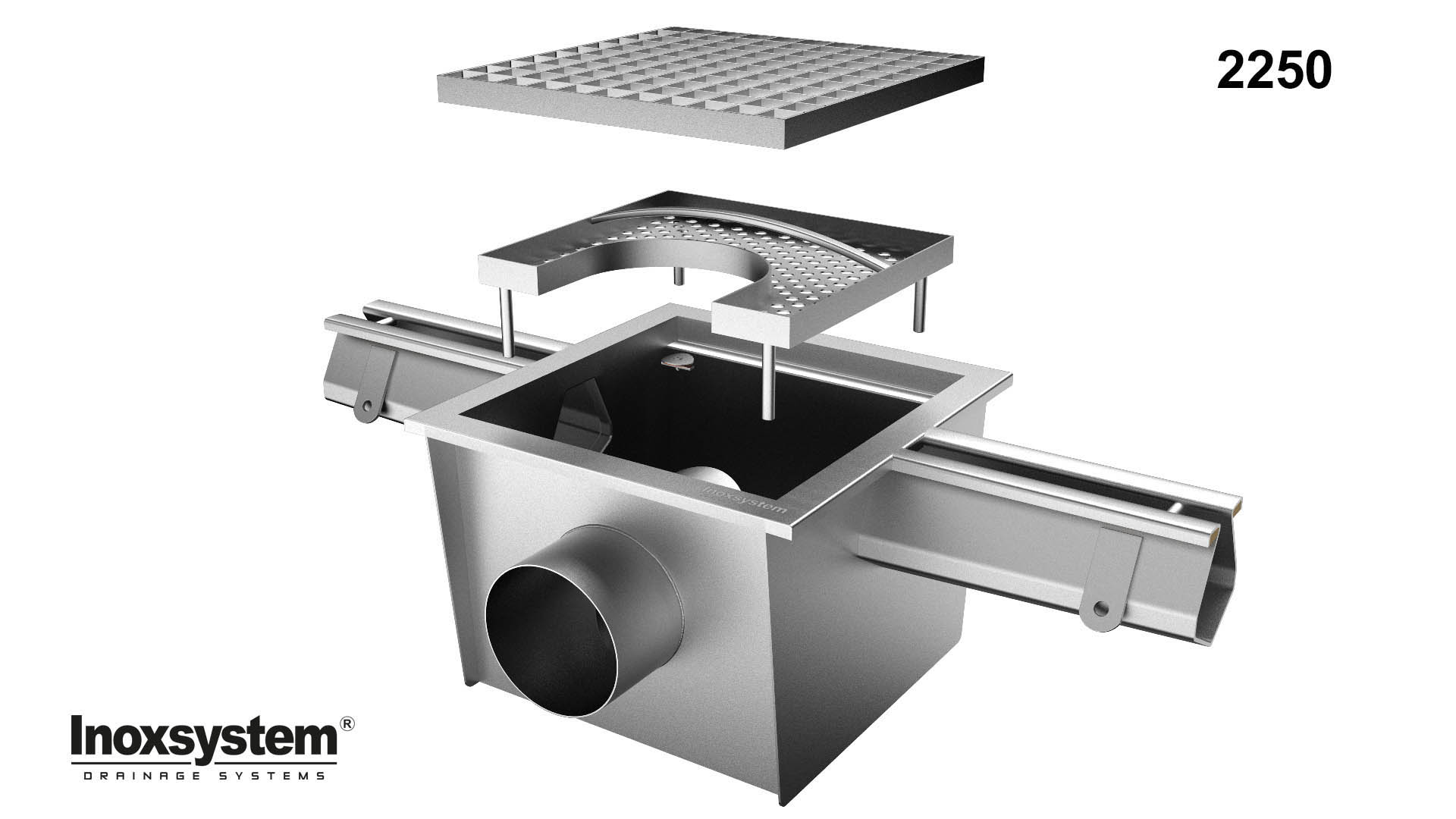

The slot channel is complete of a grated gully (also called grated manholes or grated floor drain)of different sizes 300x300-400X400-500X500 mm etc. including grating and siphoned outlet Ø 110mm with waste collector basket, considered insect and rat-proof. The gully may have a vertical outlet (Art. Inoxsystem ® TYPE "PGV") or an horizontal outlet (Art. Inoxsystem® TYPE "PGO") and can be positioned at the center, at the head or in a point of the channel defined by the customer. The cover grating can be standard with a 25x22 mesh, heel-guard 55x11 mesh, heavy bars 25x8 and double slot with surface in 6mm plate.
Upon request you can have the edges of the channel pre-filled with our special self-attaching rigid resin (Art. Inoxsystem ® "BCR") in order to get the maximum traffic duty and robustness of the product and, thanks to the groups of connection flanges every 3 or 6 meters, depending on the transport needs (Art. Inoxsystem ® "FLC") can be produced custom with various lengths. We can also provide grafts for flushing of channel with diffusers ½” (art. Inoxsystem® “IL”).

Important: All stainless steel Inoxsystem® products can be made custom, with designed drawings in collaboration with our technicians, able to satisfy the widest range of installation requirements.

Stainless steel grated gully siphoned outlet removable filter basket
