Italia IDrain linear drain with two side slots, satin finish cover, folded edge and removable odor trap and filter basket in stainless steel

(See General catalogue, page 38, Dwg. 3031-3032-3033-3034)


Spec.

Installation example

Width 60 mm

Render 3d

Width 90 mm

Entirely made of 1,5 mm thick grade 304 stainless steel (grade 316 on request), Inoxsystem® Italia IDrain linear drains are ideal for showers, pubblic services, bathrooms, terraces and other public facilities.

They are provided with two slots of 5 mm along the long sides and a satin finish grate (different types of grates on request).

Available with external width 60 mm and internal width 50 mm or external width 90 mm and internal width 80 mm, the drain body can be manufactured with built-in slope or without slope for lower overall height.

The floor drain with odor trap and insect and rat proof filter basket can be provided with a Ø 40 or 50 mm horizontal outlet or a Ø 50 or 75 mm vertical outlet, in the center, at one end or off-centre if needed.

The perimeter flange for waterproof membrane application is 20 mm below grating and provides also edging for tile coverings.

All of Inoxsystem® drainage systems are entirely made of stainless steel and can be customized to meet our customers needs.

Render 3d

Move the mouse to rotate the product
For an exploded view of the product click i
For more information click the numbers
(if you have problems viewing the 3d render, we recommend the mobile phone version)

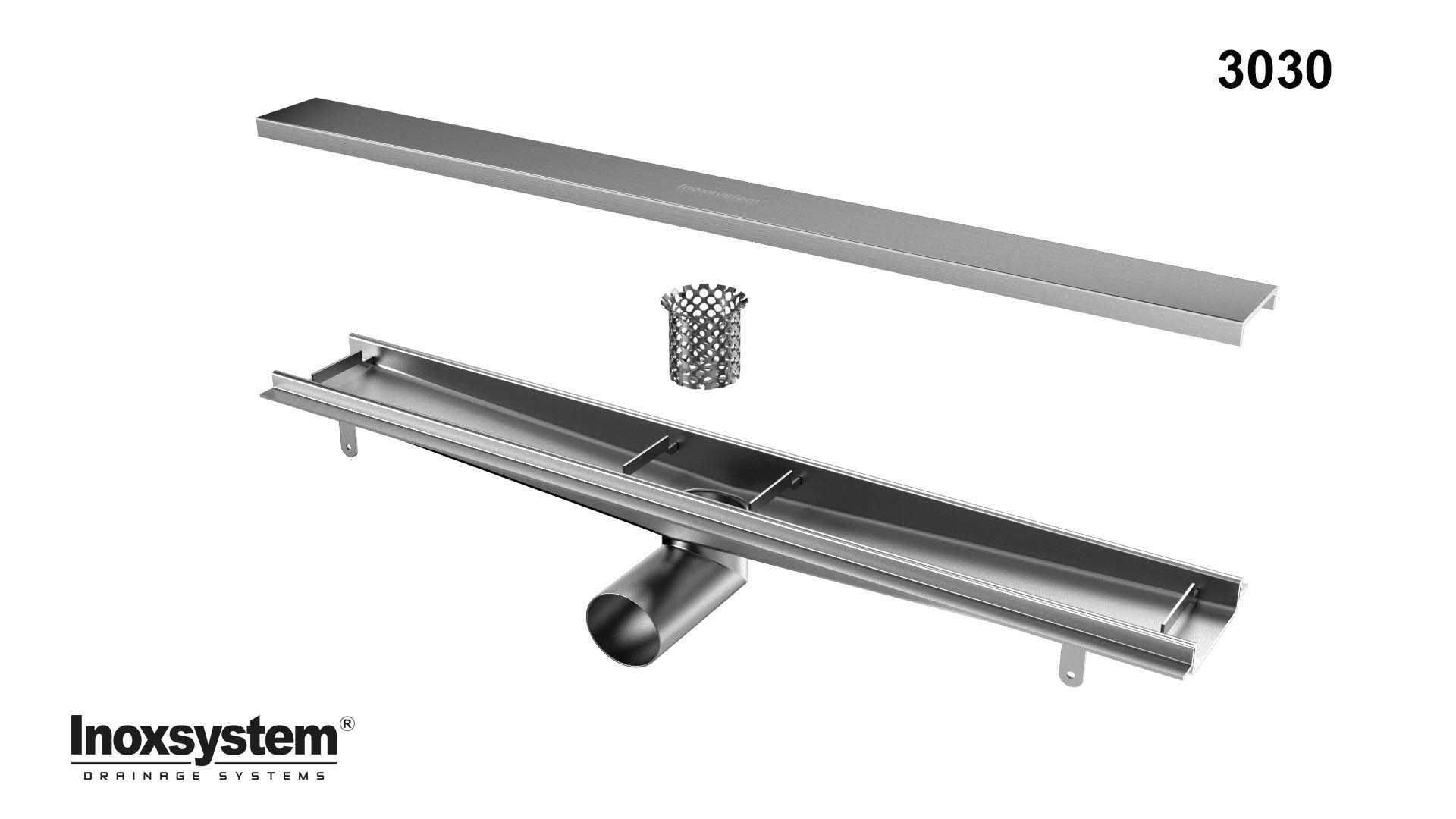

Inoxsystem 3030 line

Render 3d

Move the mouse to rotate the product
For an exploded view of the product click i
For more information click the numbers

Inoxsystem render 3030
