Slot channels with 20/15/8 mm wide central slot, vertical edges and 80x80 mm inspection unit with satin finish cover and direct outlet without odor trap

(See Dwg. 1471 – 1472 – 1473 - 1474 General Catalogue, page 28)

Installation
example


Spec.

Render 3d

Product Details

Entirely made of 2 mm thick stainless steel, grade 304 (grade 316 on request), slot channels with vertical edges are available with 20 mm wide standard slot (art. Inoxsystem® C2BDV), 15 mm wide intermediate slot (art. Inoxsystem® “C15BDV”) or 8 mm wide heel-safe slot (art. Inoxsystem® “C1BDV”).

The system is used with paving units laid against the top edge of the channel and the end result is an open slot, tapered to prevent blockage, with no visible stainless steel. Besides central slot, offset slot is salso available to enable drainage location adjacent to walls.

The body of the channel is 65 mm wide, fully inspectable. The 80x80 mm access unit, 100 mm depth, is provided with a satin finish cover with a slot into its center (non-stop slot effect) and a vertical or horizontal outlet Ø 63/50 mm with insect and rat proof filter basket, in the center, at one end or off-centre if needed.

The possibility of assembling the different sections with bolted flange connections (Inoxsystem® art. “FLC”) every 3 or 6 m provides many possible combinations, according to any customers’ specifications.

On request, the channel can be provided with ½” inlet socket to let water flush in and clen the channel (art. Inoxsystem® “IL”).


Important: All stainless steel Inoxsystem® products can be made custom, with designed drawings in collaboration with our technicians, able to satisfy the widest range of installation requirements.

Render 3d

Move the mouse to rotate the product
For an exploded view of the product click i
For more information click the numbers
(if you have problems viewing the 3d render, we recommend the mobile phone version)

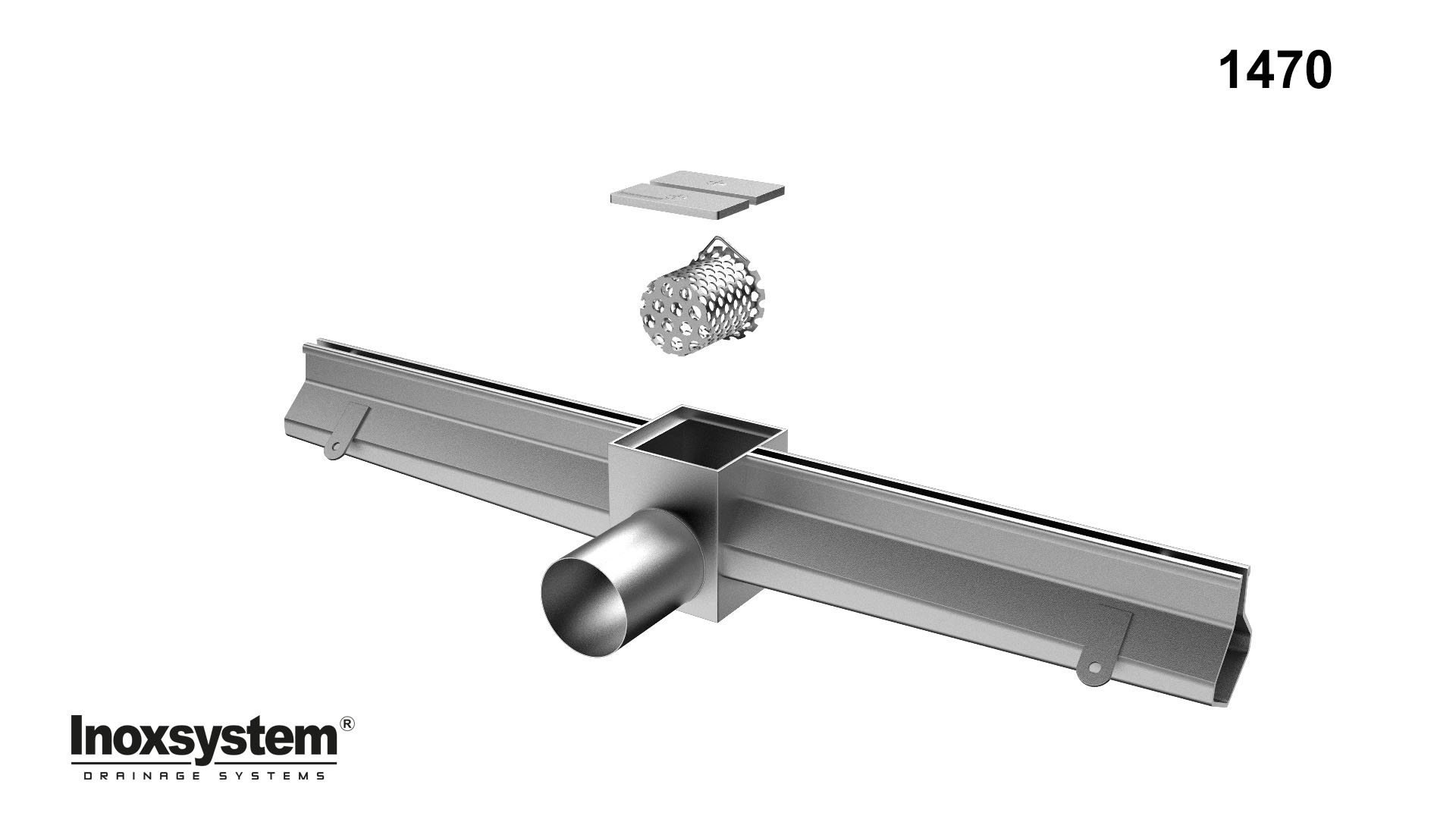

Inoxsystem 1470 line

Render 3d

Move the mouse to rotate the product
For an exploded view of the product click i
For more information click the numbers

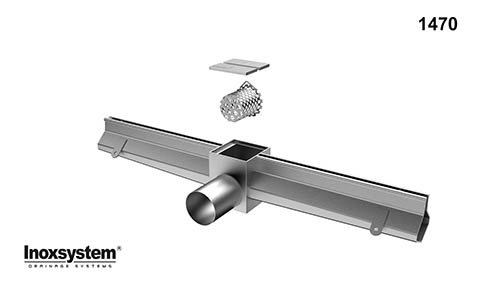

Inoxsystem render 1470

Slot channels wide central slot, inspection unit in stainless steel
