Standard slot channels with straight edges and 200x200 mm, floor drains, lowered, with outlet ø 63 mm and removable filter basket

(See Dwg. 1461 – 1462 – 1463 - 1464 General Catalogue, page 28)

Installation
example


Spec.

Render 3d

Product Details

Entirely made of 2 mm thick stainless steel, grade 304 (grade 316 on request), slot channels with vertical edges are available with 20 mm wide standard slot (art. Inoxsystem® C2BDV), 15 mm wide intermediate slot (art. Inoxsystem® “C15BDV”) or 8 mm wide heel-safe slot (art. Inoxsystem® “C1BDV”).

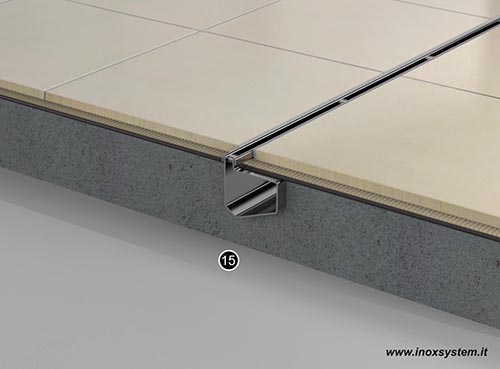

The system is used with paving units laid against the top edge of the channel and the end result is an open slot, tapered to prevent blockage, with no visible stainless steel. Besides central slot, offset slot is salso available to enable drainage location adjacent to walls.

The body of the channel is 65 mm wide, fully inspectable. The channel is provided with a 150x150 mm or 200x200 mm floor drain with odor trap and insect and rat proof filter basket., depth 140 mm, vertical or horizontal outlet Ø 63/50 mm, in the center, at one end or off-centre if needed.

The possibility of assembling the different sections with bolted flange connections (Inoxsystem® art. “FLC”) every 3 or 6 m provides many possible combinations, according to any customers’ specifications.

On request, the channel can be provided with ½” inlet socket to let water flush in and clen the channel (art. Inoxsystem® “IL”).

Important: All stainless steel Inoxsystem® products can be made custom, with designed drawings in collaboration with our technicians, able to satisfy the widest range of installation requirements.
