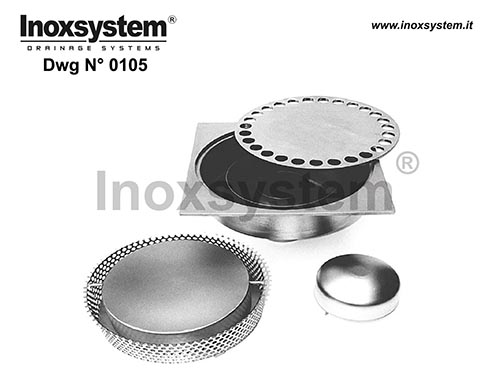

Inoxsystem® Total Hygienic standard and low profile floor drains with horizontal outlet and removable outlet and filter basket in stainless steel
(See Dwg. 0016, General catalogue page 44)
Inoxsystem® Total Hygienic heavy duty floor drains are entirely made of grade 304 stainless steel (grade 316 on request) with horizontal outlet Ø 75 mm or 110 mm (other outlet diameters on request).
The Inoxsystem® Total Hygienic line has been developed to offer fully inspectable products that ensure maximum hygiene.
By removing both the filter and internal outlet pipe the wastewater flows and the floor drain should be thoroughly cleaned.
It is highly recommended to fill the odor trap with water after cleaning in order to stop smells from coming back up.
The 6/8 mm thick top cover is rated for heavy equipment use.
The filter basket is insect and rat proof (holes Ø 8 mm).
Important: All the stainless steel products manufactured by Inoxsystem® can be made custom, with technical drawings developed in collaboration with our technicians able to satisfy the widest range of installation requirements.
