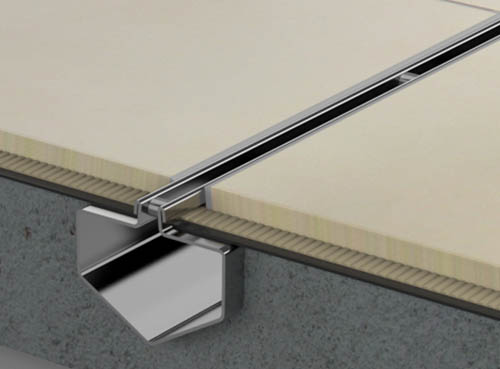

Hidden slot channel with minimum visual impact entirely made of stainless steel grade 304 (grade 316 upon request), sheet thickness 1,5 mm, with tear drop hem, ideal for terraces, swimming pools, porches and outdoor showers.

A discreet drainage solution available with a 20 mm slot (standard - Inoxsystem® article C2BDV), a 15 mm slot (medium - Inoxsystem® article C15BDV), or an 8 mm slot (heelsafe - Inoxsystem® article C2BDV) tapered to prevent blockage.

Offset slot is also avaible enabling drainage location adjacent to walls (see line 1770)

The main difference between this line and line 1470 lies in the channel width which is 70 mm and also in its shape that allows waterproof membrane application.

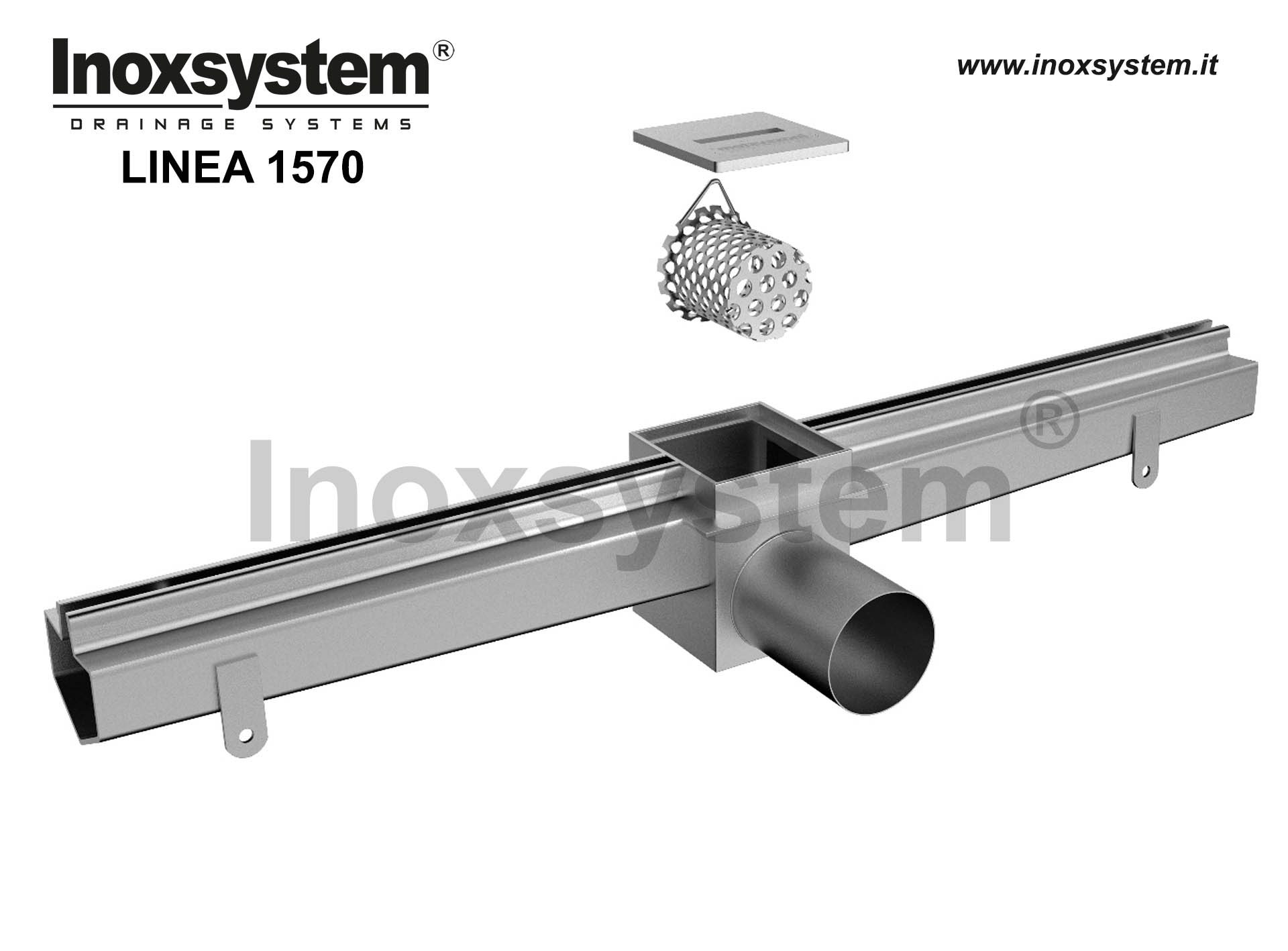

The channel is equipped with a a 80x80 mm inspection unit with satin finish top cover and anti rats and insect-proof filter basket. Central or end direct outlet (also offset on request) can be vertical or horizontal, standard diameter 63/50 mm (customisable on request). Overall height 100 mm.

½” inlet socket to let water flush in and clean the drain (Inoxsystem® article “IL”) available on request.

Important: All stainless steel Inoxsystem® products can be made custom, with designed drawings in collaboration with our technicians, able to satisfy the widest range of installation requirements.
